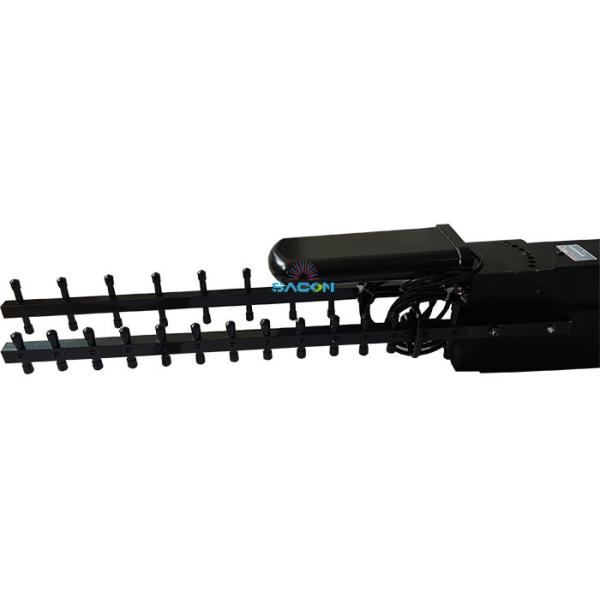

2.4G 5.8G GPS Gun Drone Signal Jammer Anti UAV Jammer 800m Range 75w
2.4G 5.8G GPS Gun Drone Signal Jammer Anti UAV Jammer 800m Range 75w
2.4G 5.8G GPS Gun Drone Signal Jammer Anti UAV Jammer 800m Range 75w
2.4G 5.8G GPS Gun Drone Signal Jammer Anti UAV Jammer 800m Range 75w
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-UAV3B
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, , Paypal
Supply Ability :
5000pcs/month
Delivery Time :
Within 3 days after receive payment
Packaging Details :
Wooden Case with PE Foam
Certification :
ISO9001
Product Name :
Anti UAV Drone Jammer
Output Power :
75w
Jamming Range :
Approximately 600 - 800m
Signal Source :
Special VCO Technology
Type :
Portable gun type
Packing Weight :
9.5kg
Description

2.4G 5.8G GPS Gun Drone Signal Jammer Anti UAV Jammer 800m Range 75w

The portable UAV/drone jammer is our company's latest product designed by R&D department,

against the widespread use of UAV nowadays.

It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, to force the UAV fall or return. The jamming distance reaches up to 800M.

Function

Effective interference with UAV Remote-Control Signal 2400MHz, GPS signal 1500MHz, Transmission Signal 5800MHz

Features

1. Signal Source: VCO technology. High integration & Stable operation.
2. highly effective power & long jamming distance
3. Portable gun type,

4.High quality tubular radiator, effective in radiating heat.
5.Import components; the moderating circuit-starting design avoids a spark, when the device turn on/off.
6. inner batteries, can check battery capacity by LCD display

Specifications:

Channel working frequency Output power(±1dBm)
CH1 2.4G 2400-2485MHz 45 dBm
CH2 5.8G 5725-5850MHz 43 dBm
CH3 GPS L1

1559-1608MHz

(GPS,GLONASS)

 44 dBm
Build-in battery

24V,12A ( about 1h working),

Check battery working by LCD display.
Signal Source VCO technology
jamming radius 500 - 800m
Antennas directional antennas
Output Power 75W
Power consumption 220W
Jammer weight 5.5Kg
Packing Weight 9.4Kg
Packing Size 72 x 39 x 17cm
Jammer Size 120×21×10cm
Humidity 30%-95%
Running temperature -20℃ to +50℃

We make field test for Futaba 14sg,

ICR = Y / X = 600 / 50=12
Y is interference distance, X is Communication distance.
When X increase, ICR will be smaller , approach to 1.
For example,
When X is 500m, Y is 1.5KM.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.

Application

Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc
