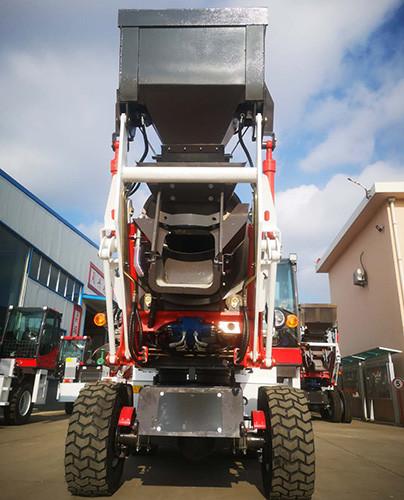

Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type
Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type
Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type
Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type
Specifications
Brand Name :
SD
Model Number :
2500
Certification :
CE/SGS
Place of Origin :
Shandong ,Qingdao
MOQ :
1
Price :
11000-25000USD
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Nude in container,2 sets for one 40 container
Bucket capacity :
0.4m3
Discharging capacity :
>1.5m3
Power :
73kw
Engine model: :
YuChai
Dimension :
5100*2350*2850 mm
Weight :
5500kg
Application :
civil construction,road construction ,all field need concrete
Srevice :
online video support ,if in large amount such as 50 sets for agency ,engineer will be dispatched for training on general maintenance
Reduction ratio :
1:24
Description

Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type

ⅠSelf-loading concrete mixer can load aggregate, cement and water, mix and transport.

Our product is the top-choice for the concrete transporation for rural construction,urban construction,tunnel,airport,seaport,high-speed rail,beam field,bridge construction projects and so on.

Self-loading concrete mixer is equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is easy to operate and go everywhere needed.It’s the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture.

Ⅱ.Technical parameter of self loading concrete mixing plant

Overall size(mm)
5100*2350*2850
Wheelbase(mm)
2300
Weight(kg)
5500
Engine
YuChai 4100 Supercharged
(Weichai,Cummins Optional)
Power(kw)
73(99Hp)
Gearbox
265 Integrated
Drive axle
1.8T Wheel axle reduction bridge
Tire
20.5-16
Bucket capacity(m³)
0.4
Drum capacity(m³)
2.5
Mixing capacity
>=1.5
Reduction ratio
1:24
Rotating speed(rpm)
>=15
Reducer
Chinese brand
Drum slewing angle
±90 °
Tanks capacity
Water:800L
Gradeabiliy
30 °
Loading qty
2 units /40 HC
Productivity
8-10 m³/h
Quality guarantee period
6 months


Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type
The discharging is 0.7m3,1m3,1.5m3,2m3 ,3m3 ,3.5m3 ,4m5,5m3 , among of them ,2-3m3 is in large demand .You can choice which one is suitable .

Ⅲ:Application :


All filed need concrete such as civil construction ,road construction ,housing building ,since it is in low maintenance and easy operation ,rental is another application when you buy it .

Ⅴ:Self loading concrete mixing plant
5 - 8 cans can be mixed in 1 hour
Top speed: 25 km / hour
Turning radius: 4 m
When fully loaded, the climbing ability is up to 30°.


Small Mobile Concrete Mixing Plant 1.5M3 Concrete Mixer Truck Self Loading Type

Contact us to get more details and video .
