Dry Mobile Batch Plants Dry Containerized Concrete Batch Plants 100 m³/h Dry mix concrete Plant
Dry Mobile Batch Plants Dry Containerized Concrete Batch Plants 100 m³/h Dry mix concrete Plant
Dry Mobile Batch Plants Dry Containerized Concrete Batch Plants 100 m³/h Dry mix concrete Plant
Dry Mobile Batch Plants Dry Containerized Concrete Batch Plants 100 m³/h Dry mix concrete Plant
Specifications
Brand Name :
ENCKE
Model Number :
100 m³/h
Certification :
CE
Place of Origin :
Mainland
MOQ :
1 set
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Delivery Time :
20-30 work days
Packaging Details :
Stand Container
type :
batching and mixing equipment
Aggregate weighing hopper :
13 m³
Conveyor screw :
Ø 273 mm
Water weighing system :
Liter counter pulse emitter
Cement weighing system :
3 ton
Aggregate weighing system :
20 ton
Description

Dry Mobile Batch Plants Dry Containerized Concrete Batch Plants 100 m³/h Dry mix concrete Plant

Ready Mix Concrete Batching Plant is suitable for industrial, civil construction, roads, railways, bridges, electric power, water conservancy, port terminals, airports, and other projects. Ready mixed concrete batching plant can be used as a piece of mixing equipment for commercial concrete production and combined various forms of different specifications concrete batching plant according to the needs of different users.

Technical Features:

Technical features METRIC UNITS UNITED STATES UNITS
Theoretical hourly output 100 m3/h 130 yd3/h
Aggregate storage 65-95 m3 85-124 yd3
Aggregate storage bins 4 n° 4 n°
Discharge gates/Pneumatic cylinders 8/8 n° 8/8 n°
Aggregate weighing hopper 13 m3 17 yd3
Aggregate weighing system 20000 kg 44,092 lb
Cement weighing hopper 3 m3 3.9 yd3
Cement weighing system 3000 kg 6,610 lb
Liter counter pulse emitter 2” 54m3/h
Extractor belt with sheet 800 mm 220 m3/h 287 yd3/h
Conveyor belt with sheet 800 mm 220 m3/h 287 yd3/h
Loading screw Ø 273 mm 80 ton/h 88 t/h
Air compressor 500 L 132 gal
Operating voltage 400 V 460 V
Operating frequency 50/60 Hz 50/60 Hz
Absorbed electrical power 55/41 HP/kW 55/41 HP/kW
Installed electrical power 75/56 HP/kW 75/56 HP/kW

General technical information:

Dry mix concrete batching plant:

Minimal foundation works
Possibility of moving the plant from one site to another
Low maintenance costs
Pre-cabled and pre-assembled at the workshop
Speed of assembling in site
Easy and cheap transport

Ready mix concrete plant can be customized !

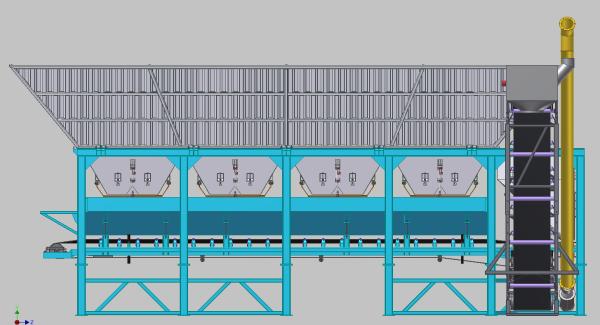

Detail show:

Dry Mobile Batch Plants Dry Containerized Concrete Batch Plants 100 m³/h Dry mix concrete Plant
