Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
Specifications
Brand Name :
ENCKE
Model Number :
BCS 150
Certification :
CE
Place of Origin :
Mainland
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
Stand Container
Type :
Bolted
Material Level Detection :
Level Indicator
Feed From :
Pneumatic Conveying
Dust Filter :
Dust Filter 24.5 ㎡
Safety :
Pressure Relief Valve
Color :
According to customer requirements
Description

General technical information:

The silo is combined by four main parts: the cover, wall sections, cones and supporting legs. All parts are pressed by special machine and mould, especially the wall sections which can be changed every place on the wall.

The silo can be dismantled into many parts when transport, and can be installed with bolts easily, a 100T capacity silo can be assembled by 3 men in 3 days, so it is easy to transport and convenient to use.

It is equipped with automatic dust collector, butterfly valve, automatic broken arch and the upper and lower level indicators and other facilities.

Technical features:

Capacity Diameter *Height Supporting Legs Thickness of Steel Plate Weight
50T 3160 mm 6.5 m 219 4mm 3.7T
100T 3160 mm 10.7 m 219 4mm 5.5T
150T 3160 mm 15 m 219

4mm

cone 5mm

 8T
200T 4500 mm 11.5 m 273

5mm

cone 6mm

 12T
300T 5300 mm 12.7 m 325

6mm

cone 8mm

 17T
400T 6800 mm 11.7 m 325

6mm

cone 8mm

 21T
500T 6800 mm 13.5 m 325

6mm

cone 8mm

 28T

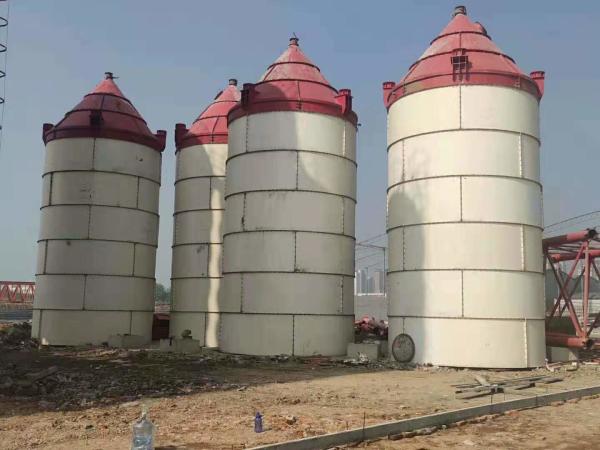

Detail show:

Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level IndicatorBolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator

Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator

Bolted Type Batching Plant Cement Silo 150 Ton With Dust Collector And Level Indicator
