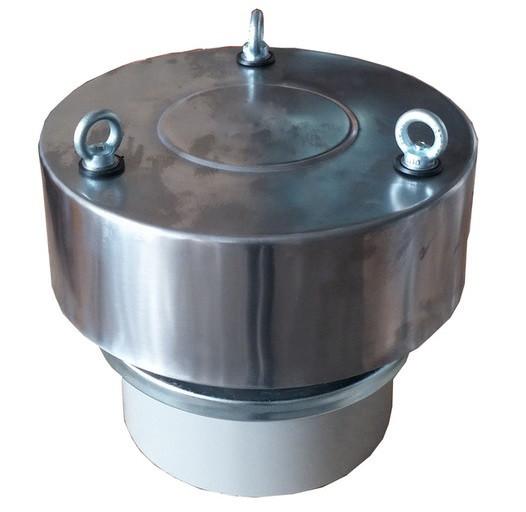

VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts
VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts
VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts
VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts
Specifications
Brand Name :
ENCKE
Model Number :
VCP273
Certification :
CE SGS IS9001
Place of Origin :
Mainland
MOQ :
5 sets
Payment Terms :
T/T, L/C, D/A, Western Union, MoneyGram, D/P,
Supply Ability :
10000 sets per year
Delivery Time :
7 work days
Packaging Details :
Stand
Pressure :
multiple 2 bar,4 bar ,6 bar
Material :
stainless steel
Description

VCP Pressure Relief Valves safety valve Horizontal Cement Silo Accessories

General technical information:

Helical springs keep the valve lids closed when the pressure value remains within the preset limits. The three outside spring rods keep the external ring-shaped lid firmly closed as long as the force generated by the pressure inside the silo does not overcome the spring force. Once the pressure exceeds the pre-set value the lid is pushed up and pressure can escape. The smaller lid covers the central circular opening of the external lid from below. It is held in the middle by a single spring rod and is pressed onto the external lid by the normal air pressure inside the silo. In the event of suction pressure the spring is compressed and allows the lid to drop. The air entering the silo from outside ensures rapid pressure balance and pushes the central lid back up into "closed" position.

Detail show:

VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts

Technical Features:

Model Preset for maximum negative pressure Preset for maximum excess pressure Weight
VCP273 -0.005 bar 0.05 bar 9.5KG
