High Efficiency PSG Series Symons Cone Crusher Machine 16-50t/H Capacity
High Efficiency PSG Series Symons Cone Crusher Machine 16-50t/H Capacity
Specifications
Brand Name :
TORUI
Model Number :
PSGB-0607
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
30 set/month
Delivery Time :
30-35 Work Days
Packaging Details :
Custom required
Type :
2'FT
Model :
PSGB-D0607
Cavity type :
Standard medium
Diameter of Cone :
600mm
Adjusting range of discharge opening :
6-38mm
Recommend feeding size when the minimum output size :
70mm
Max feed size :
60mm
Capacity :
16-50t/h
Description

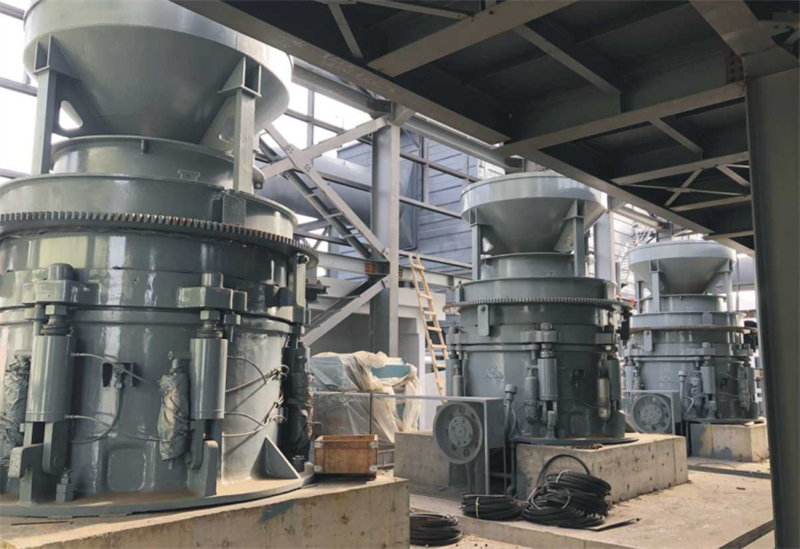

PSG Series Symons Cone Crusher

Product Features


The PSG series Symons cone crusher is widely used in metallurgical industry,construction materials industry,road building
industry,chemical industry and silicate industry.It is suitable to crush ores and rocks with medium hardness and medium
hardness above.


It has features of strong crushing force,reliable structure,high efficiency,high capacity,low operation cost,easy adjustment,
economical to use and so on.In the medium and large type of cone crusher,multi-cylinder hydraulic locking clearing system
can decrease downtime and save the working strength.The PSG series also use the hydraulic locking and machinery which
is more reliable.Importantly,every type has several cavity types,the customer can choose different cavity type according to
different requirement.


Also PSG series Symons cone crusher use compensating lubricating grease sealing,which can avoid lubrication oil being
polluted by dust,so that all parts work reliably and have a long operating life.The safety insurance system uses spring sets,
so the foreign matter and iron ore are down from the crushing cavity and do not damage the crusher,simply and reliably.

Type Model Cavity type Diameter of cone
(mm)		 Adjusting range of discharge opening
(mm)		 Recommend feeding size when the minimum output size
(mm)		 Max feed size
(mm)		 Capacity
(t/h)		 Main motor power
(kw)		 Weight
(kg)		 Diemension
(L*W*Hmm)
2TT PSGB-0607 Standard fine 600 6-38 70 60 16-50 30 4500 2195x1158 X1651
PSGB-0609 Standard medium 10-38 95 80 18-65
PSGB-0611 Standard coarse 13-38 110 90 22-70
PSGD-0603 Short head fine 3-13 35 30 9-35
PSGD-0605 Short head coarse 5~1 6 50 40 22-70
