150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
150 Ton Concrete Plant Silo In Cement Industry Easy Installation
Specifications
Brand Name :
TORUI
Model Number :
150T
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
50 set/month
Delivery Time :
20-25 Work Days
Packaging Details :
Custom required
Model :
150T
Tank Diameter :
φ3200mm
Straight SectionHeight :
13500mm
Total Height :
15840mm
Description

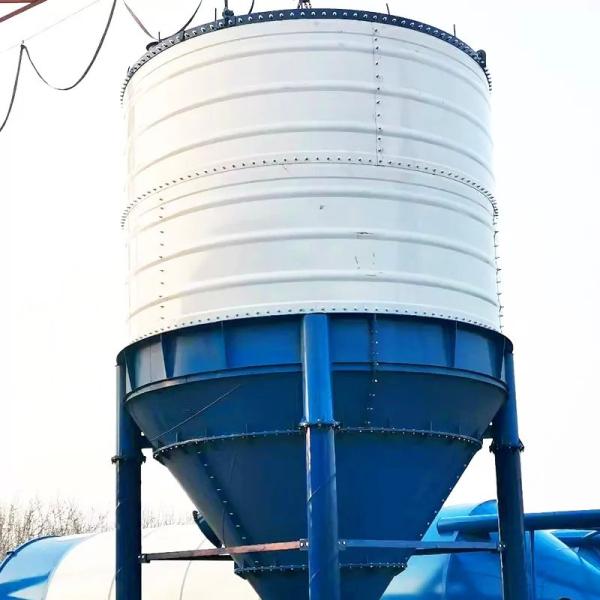

150T Cement Silo

Characteristics


Cement silo is a cylindrical structure, the bottom of the four round tube legs to support the whole silo, the whole silo is all steel structure form, welded; the top is equipped with dust collector and pressure safety valve.

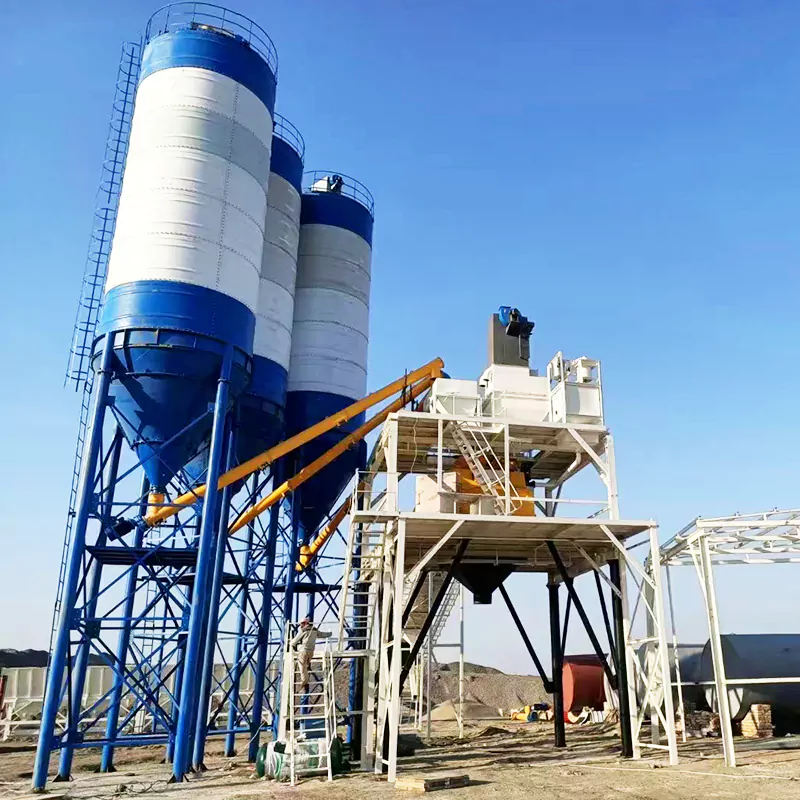

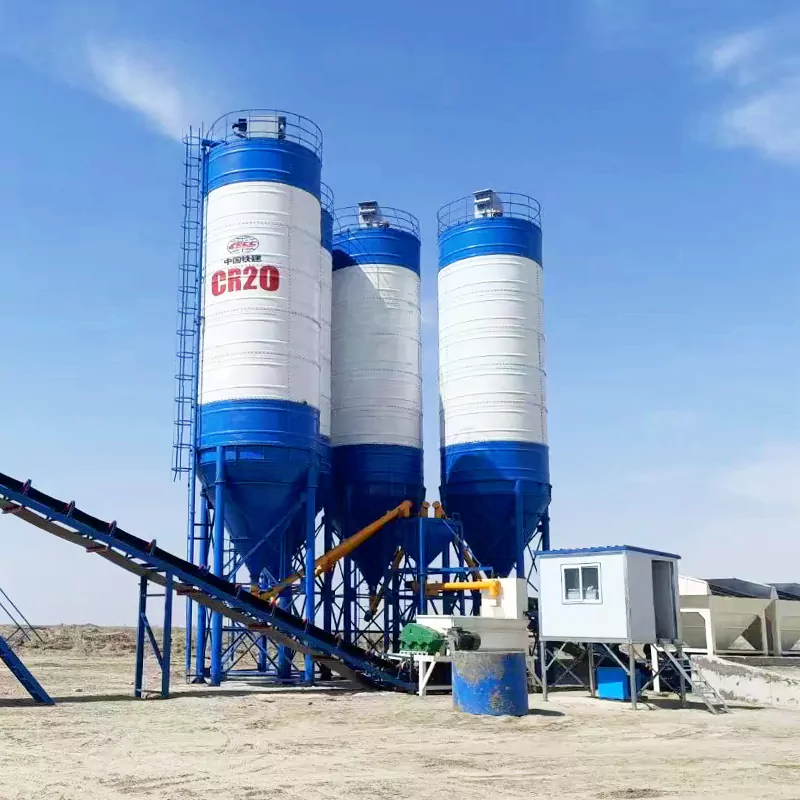

1, Cement silo is usually used as the supporting products of concrete mixing plant (building).


2, It is suitable for loading bulk cement and dry fly ash, with the characteristics of rainproof, moisture-proof, easy to use, etc.; the specification size can also be made according to the size required by the customer.


3,generally for the cylinder support structure, the upper part of the dust removal equipment to prevent dust leakage, the lower part is equipped with arch-breaking devices to prevent powder caking, so that the powder is discharged smoothly, and is equipped with material level sensing equipment, which can keep track of the use of materials in the warehouse.


4, Generally adopt bulk cement conveying truck to send powder into the silo by air; according to the different structure of cement silo, there are generally two ways of unloading, one is the lower part of the screw conveyor connected with the screw conveyor to send the powder into the powder metering, and the other is to use pneumatic conveying.


Spec		 Tank Diameter(mm) straight section Height(mm) Total Height(mm)
50T φ2800 5500 7555
φ3000 4500 6700
60T φ2800 6750 8805
φ3000 6000 8200
80T φ2800 9000 11055
φ3000 7500 9700
100T φ2800 10500 12555
φ3000 9750 11950
150T φ3200 13500 15840
