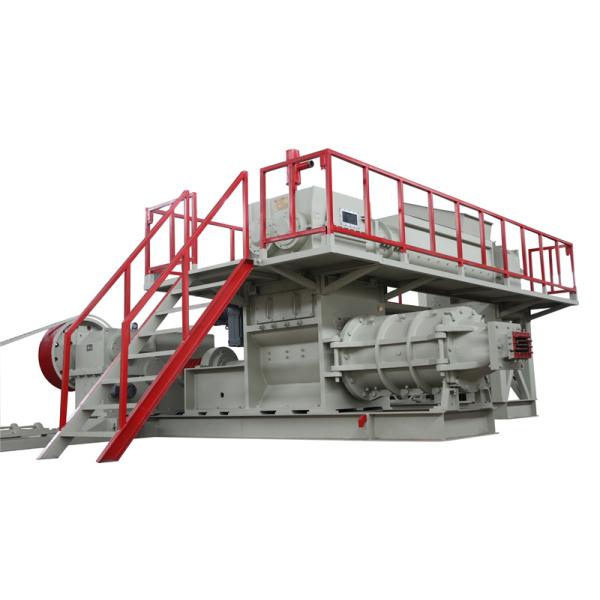

Double Stage Hard Plastic Vacuum Extruder Machine 20000-35000 Pcs/Hour
Double Stage Hard Plastic Vacuum Extruder Machine 20000-35000 Pcs/Hour
Specifications
Brand Name :
TORUI
Model Number :
JKY80/70B-40
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
10 set/month
Delivery Time :
30-35 Work Days
Packaging Details :
Customized
Capacity :
20000-35000 pcs/hour
Extruding force :
4.0 Mpa
Power Requirement :
Y6-400 Lower stage
Rotate Speed of Principal Axis :
14 turn/m lower stage
Description
Double-stage Hard-plastic Vacuum Extruder

Functions and features:

The wear parts of this extruder's reamer are made of wear-resistant metal materials and reamer shaft is made of alloy steel which are all quenched and tempered. Reducer uses the company's special four-axis three-stage hard-tooth surface reducer, bearing and gears use oil pump circulating lubrication. This machine has large extrusion pressure, especially adapted to coal gangue, fly ash, clay and other materials to produce various types of sintered bricks

Main technical Parameter

Specification Model Throughput (Piece/hr) Extruding force (Mpa) (KW) Power Requirement Rotate Speed of Principal Axis (turn/m) Exterior Dimension LxWxHmm
Upper stage Lower stage Upper stage Lower stage
JKY80/70B-40 20000-35000 4.0 Y6-160 Y6-400 18 14 Lower:7100X3150X2000
Upper:6620X3030X3670
JKY70/60B-40 16000-30000 4.0 Y6-132 Y6-315 20 16 Lower:6420X3050X1915
Upper:6060X3000X3530
JKY60/50B-40 14000-25000 4.0 Y6-90 Y4-250 25 22 Lower:5900X2800X1820
Upper:5860X3000X3450
JKY55/50B-40 13000-22000 4.0 Y6-75 Y4-200 27 24 Lower:5500X2650X1625
Upper:5500X2720X2500
JKY50/50E-40 11000-16000 4.0 Y6-75 Y6-160 38 25 Lower:4400X1000X1200
Upper:5280X1600X1570
