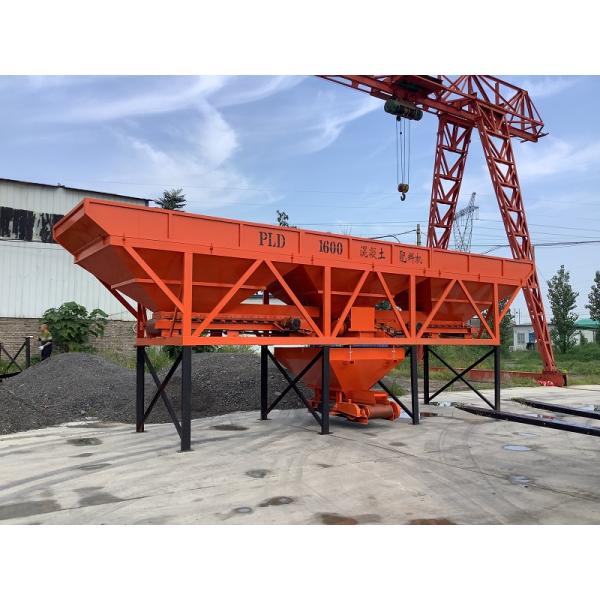

PLD1600 Concrete Batch Mixer Machine 80m3/H Productivity Microcomputer Control
PLD1600 Concrete Batch Mixer Machine 80m3/H Productivity Microcomputer Control
Specifications
Brand Name :
TORUI
Model Number :
PLD1600
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
50 set/month
Delivery Time :
20-25 Work Days
Packaging Details :
Custom required
Project PLD800 PLD800S PLD1200-I Weighing bucket volume (m³) :
1.6m3
Storage hopper volume :
4*3.7m3
productivity :
80m³/h
Power :
4x3kw
Batching accuracy :
±2%
Description

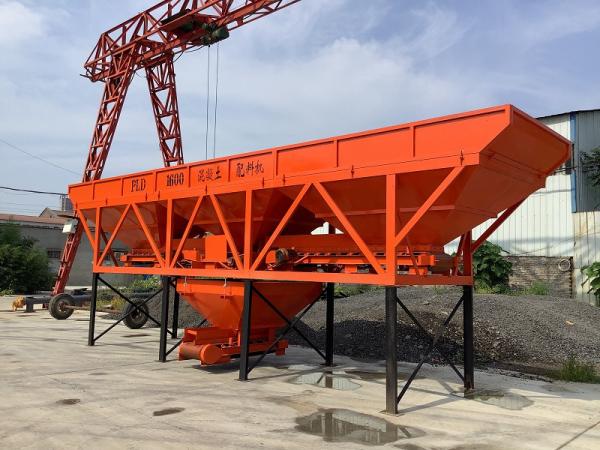

PLD1600 concrete batching machine

The PLD series concrete batching machine is an advanced automatic batching equipment designed to work alongside mixers. It facilitates the precise batching of 3-6 different materials such as sand, stone, and cement, according to user-defined concrete proportions.

Compliant with the technical standards outlined in GB10172 for Concrete Mixing Plant batching systems, this machine utilizes electronic weighing, microcomputer control, digital display, and wired remote control operation. These features ensure accurate weighing, high batching precision, rapid operation, and robust control capabilities. Its user-friendly interface simplifies operation to pressing a key for each operation step.

When combined with a corresponding concrete mixer, this series can configure various types and specifications of mixing plants. Importantly, it achieves this at a cost significantly lower (approximately 1/2 - 1/3) than that of standard mixing plants of similar specifications. Additionally, its mobility facilitates easy installation on-site, making it an ideal choice for producing high-quality concrete efficiently.

Project

PLD800

PLD1600

PLD1200-I
Weighing bucket volume (m³) 0.8 1.6 1.2
Storage hopper volume (m³) 2x2 3*3.7 2x2.2
Productivity (m³/h) 48 80 60
Batching accuracy (%) ±2% ±2% ±2%
Maximum weighing value (kg) 1500 3000 2000
Number of aggregates that can be equipped (species) 2 3 2
Loading height (mm) 3000 3000 3000
Current belt speed (m/s) 1.25 1.25 1.25
Power (kw) 3x3 4x3 3x3
Overall weight (kg) 2300 4750 2900
Dimensions (mm) (length x width x height) 6400x1600x3000 9600x2000x3200 6400x2000x3200
