High Accuracy PLD1200 Concrete Batching Machine Automatically Fast Speed
High Accuracy PLD1200 Concrete Batching Machine Automatically Fast Speed
Specifications
Brand Name :
TORUI
Model Number :
PLD1200
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
50 set/month
Delivery Time :
20-25 Work Days
Packaging Details :
Custom required
Project PLD800 PLD800S PLD1200-I Weighing bucket volume (m³) :
1.2m3
Storage hopper volume :
2x2.2m3
productivity :
60m³/h
Power :
3x3
Batching accuracy :
±2%
Description

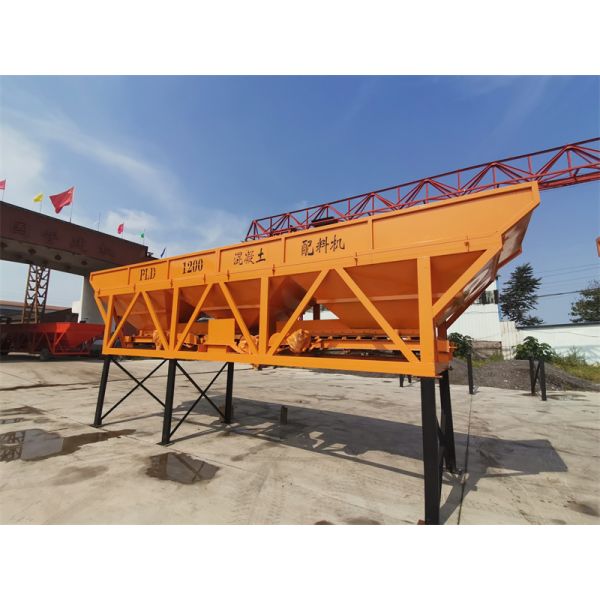

PLD1200 concrete batching machine

PLD series concrete batching machine is a kind of foreground automatic batching equipment used with mixer. It can automatically complete the batching procedure of 3-6 kinds of materials (secondary concrete) such as sand, stone, cement, etc. according to the concrete proportion designed by users.

This series of products are designed according to the technical standard of batching system in GB10172 Technical Conditions of Concrete Mixing Plant. The machine adopts electronic weighing, microcomputer control, digital display, wired remote control operation, which has the advantages of accurate weighing, high batching accuracy, fast speed, strong control function, etc. The operation is so easy that you only need to press the key every time.

This series of concrete batching machine and the corresponding concrete mixer combination, can form a variety of different forms, different specifications of the combination of mixing plant, and the cost is only the same specifications of the mixing plant of 1/2 - 1/3, and mobile installation is very convenient, is the site of the production of high-quality concrete ideal equipment.

Project

PLD800

PLD800S

PLD1200-I
Weighing bucket volume (m³) 0.8 0.8 1.2
Storage hopper volume (m³) 2x2 2x2 2x2.2
Productivity (m³/h) 48 48 60
Batching accuracy (%) ±2% ±2% ±2%
Maximum weighing value (kg) 1500 1500 2000
Number of aggregates that can be equipped (species) 2 2 2
Loading height (mm) 3000 3000 3000
Current belt speed (m/s) 1.25 1.25 1.25
Power (kw) 3x3 3x3 3x3
Overall weight (kg) 2300 2500 2900
Dimensions (mm) (length x width x height) 6400x1600x3000 6400x1600x3000 6400x2000x3200
