PF Series Impact Stone Crusher Machine 30-50t/H For Construction Industry
PF Series Impact Stone Crusher Machine 30-50t/H For Construction Industry
Specifications
Brand Name :
TORUI
Model Number :
PF-1007
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
30 set/month
Delivery Time :
30-35 Work Days
Packaging Details :
Custom required
Model :
PF-1007
Rotor spec :
1000*700mm
Feed opening size :
400*730mm
Max feed edge :
300mm
Capacity :
30-50t/h
Motor power :
37-55kw
Weight :
9.5t
Description

PF Series Impact Crusher

Brief Introduction


Impact crusher adopts the advanced technology and unique structural design,finished products present cubic shape without tension and cracks make the particle shape more perfectly.It can crush coarse,medium and fine materials small than 500mm,with compression strength lower than 350MPA,such as granite,limestone,concrete etc.Impact crusher is widely used in all kinds of ore crushing,railway,highway,energy,cement,chemical and construction industry etc.the output size can be adjusted.

Features and Advantages


1.Many cavities to crush,suitable for crushing hard rock;
2.Reasonable design of leveling plate makes final products finer and in cubic shape without interior cracks;
3.Low and big feed opening makes the production line easy to arrange and increase the size of feeding material;
4.Use the full hydraulic open device,easy to maintain and change wear-parts;
5.New anti-abrasive material makes longer service life of blow bar,impact plate and liner.

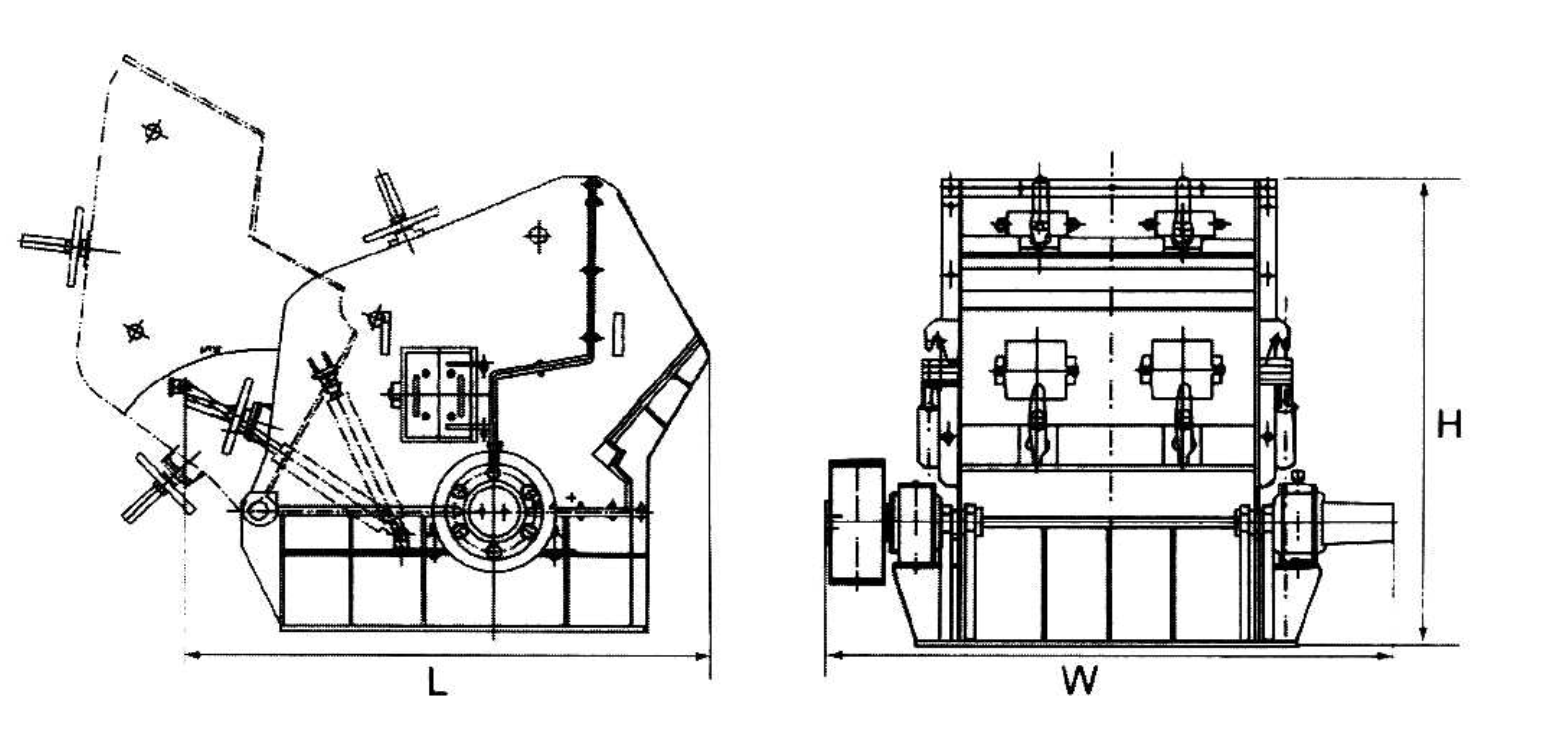

Model Rotor spec (mm) Feed opening size(mm) Max feed edge(mm) Capacity (t/h) Motor power (kw) Weight (t) Overall dimension (LxWxH)(mm)
PF-1007 1000*700 400*730 300 30-50 37-55 9.5 2400x1558x2660
PF-1010 1000*1050 400*1080 350 50-80 55-75 12.2 2400x2250x2620
PF-1210 1250*1050 400*1080 350 70-120 110-132 14.9 2690x2338x2890
PF-1214 1250*1400 400*1430 350 110-180 132-160 18.6 2690x2688x2890
PF-1315 1320*1500 860*1520 500 160-250 180-260 19.3 3096x3273x2667
PF-1320 1320*2000 860*2030 500 160-350 300-375 28 3096x3560x3185
PF-1520 1500*2000 1315*2040 700 300-500 400-450 42.8 3890x3560x3220
