GZT Series Electric Vibrating Feeder Machine 30-80t/H With 450mm Max Feed Size
GZT Series Electric Vibrating Feeder Machine 30-80t/H With 450mm Max Feed Size
Specifications
Brand Name :
TORUI
Model Number :
GZT-0724
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
30 set/month
Delivery Time :
30-35 Work Days
Packaging Details :
Custom required
Model :
GZT-0724
Max feed size :
450mm
Capacity :
30-80t/h
Motor power :
2*1.5kw
Installation slope :
10°
Double amplitude :
4-6mm
Dimensions :
2481*1130*990mm
Description

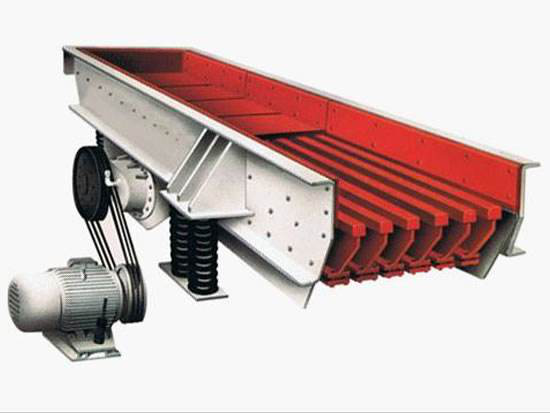

GZT Series Vibrating Feeder

Brief Introduction


GZT series vibrating feeder is designed and manufactured by absorbing Sweden's technology and adopts vibrating motor manufactured by Japan technology as the excitation source.This series vibrating is applied to evenly feeding material into primary crusher.It can remove the fine material and dust under the action of the bar screen surface to realize the pre-screening,which can improve the coarse crushing capacity.It is especially suitable for material feeding before the coarse crushing in the hydropower, building material and mining industry.

Model Max feed size (mm) Capacity (t/h) Motor power (kw) Installation slope (° ) Double amplitude (mm) Overall dimensions (mm) Weight (kg)
GZT-0724 450 30-80 2*1.5 10 4-6 2481*1130*990 2422
GZT-0932 560 80-150 2*2.4 10 4-8 3298*1512*1195 3203
GZT-0940 560 80-180 2*3.7 10 4-8 4100*1818*1134 3700
GZT-1148 600 150-300 2*5.5 10 4-8 4926*1676*1475 5060
GZT-1256 800 180-400 2*7.5 10 4-8 5704*1840*1492 6385
GZT-1 560 1000 400-600 2*13 10 4-8 6110*2440*1560 8900
