YK Series 11kw Vibrating Screen Machine 10-80t/H Capacity High Efficiency
YK Series 11kw Vibrating Screen Machine 10-80t/H Capacity High Efficiency
Specifications
Brand Name :
TORUI
Model Number :
2YK1237
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
30 set/month
Delivery Time :
30-35 Work Days
Packaging Details :
Custom required
Model :
2yk1237
Screen size :
3700*1200mm
Layers :
2
Screen mesh :
3-80mm
Max feed size :
100mm
Capacity :
10-80t/h
Power :
11kw
Description

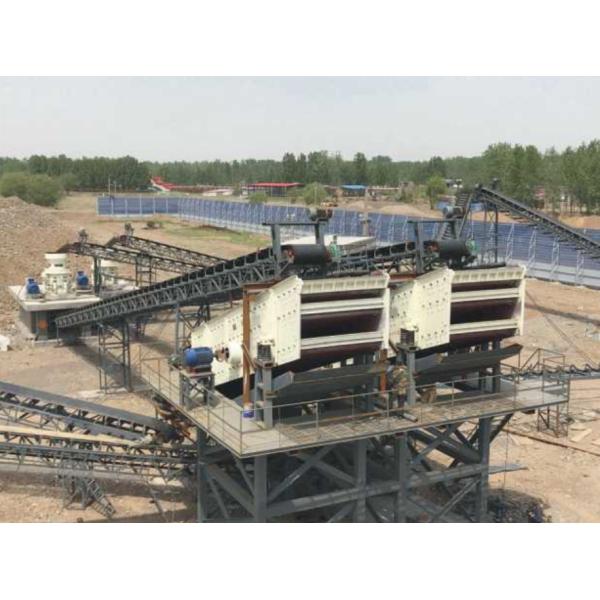

YK Series Vibrating Screen

Brief Introduction


The motion trail of this screen is similar as a circle,so it is called circular vibrating screen.It is a new type of high efficiency multi-layer vibrating screen,adopting cylinder type eccentric shaft vibration exciter and eccentric block to adjust the amplitude.it has long screening line and can screen out multi-size product.So it is widely applied to mining, building materials,transportation,energy and chemical industry.

Features


1.It uses cylinder-type eccentric shaft and eccentric block to make strong vibrating force.
2.Beam is connected to the main body with bolts,has the feature of high strength.
3.Side plate of the screen box is made of high strength and high impact resistance steel boiler plate.
4.It adopts small amplitude,high frequency and large obliquity structure,which enable the vibrating screen has the advantages of high screening efficiency,large processing capacity,long service life,low power consumption and low noise.

Model Screen size (mm) Layers Screen mesh(mm) Max feed size (mm) Capacity (t/h) Power (Kw) Vibrating frequency (r/min) Double Amplitude (mm)
2YK1237 3700*1200 2 3-80 100 10-80 11 750-950 6-9
3YK1237 3700*1200 3 3-80 100 10-80 11 750-950 6-9
2YK1548 4800*1500 2 3-80 100 30-200 11 750-950 6-9
3YK1548 4800*1500 3 3-80 100 30-200 15 750-950 6-9
4YK1548 4800*1500 4 3-80 100 30-200 15 750-950 6-9
2YK1848 4800*1800 2 3-80 100 50-250 18.5 750-950 6-9
3YK1848 4800*1800 3 3-80 100 50-250 18.5 750-950 6-9
2YK1860 6000*1800 2 3-80 100 60-300 18.5 750-950 6-9
3YK1860 6000*1800 3 3-80 100 60-300 22 750-950 6-9
4YK1860 6000*1800 4 3-80 100 60-300 30 750-950 6-9
2YK2160 6000*2100 2 3-80 100 80-400 22 750-950 6-9
3YK2160 6000*2100 3 3-80 100 80-400 30 750-950 6-9
4YK2160 6000*2100 4 3-80 100 80-400 30 750-950 6-9
2YK2460 6000*2400 2 3-80 200 100-500 30 750-950 6-9
3YK2460 6000*2400 3 3-80 200 100-500 37 750-950 6-9
4YK2460 6000*2400 4 3-80 200 100-500 37 750-950 6-9
2YK2475 7500*2400 2 3-80 200 100-500 30 750-950 6-9
3YK2475 7500*2400 3 3-80 200 100-500 37 750-950 6-9
4YK2475 7500*2400 4 3-80 200 100-500 37 750-950 6-9
2YK2870 7000*2800 2 3-80 200 100-700 2x22 750-950 6-9
3YK2870 7000*2800 3 3-80 200 100-700 2x30 650-850 6-9
4YK2870 7000*2800 4 3-80 200 100-700 2x30 650-850 6-9
2YK3072 7200*3000 2 3-80 200 150-800 2x30 650-850 6-9
3YK3O72 7200*3000 3 3-80 200 150-800 2x30 650-850 6-9
2YK3272 7200*3200 2 3-80 200 150-800 2x30 650-850 6-9
3YK3272 7200*3200 3 3-80 200 150-800 2x30 650-850 6-9
