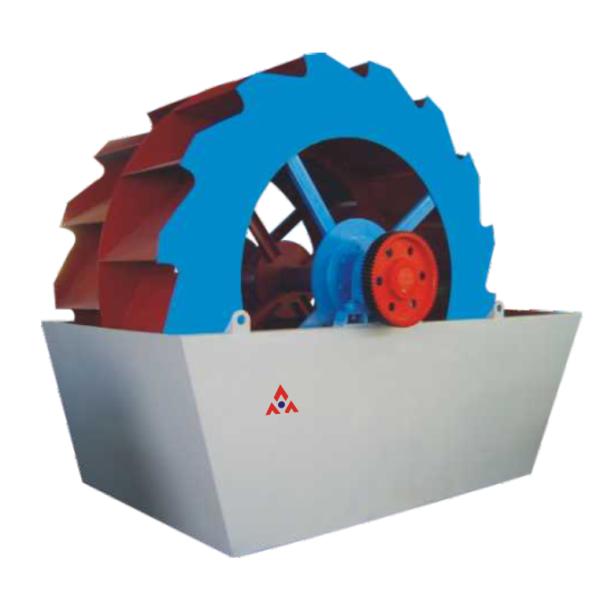

Reliable XL Series Sand Washer Machine 20t/H Capacity 38rpm Speed
Reliable XL Series Sand Washer Machine 20t/H Capacity 38rpm Speed
Specifications
Brand Name :
TORUI
Model Number :
XL508
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
30 set/month
Delivery Time :
30-35 Work Days
Packaging Details :
Custom required
Model :
XL508
Screw Diameter :
508mm
Length of chute :
6705mm
Max feeding size :
≤10mm
Capacity :
20t/h
Speed :
38rpm
Power :
5.5kw
Description

GZT Series Vibrating Feeder

Brief Introduction


XL series sand washer can wash and separate out the soil and foreign material in the sand.Its new seal structure,adjustable overflow plate,reliable
transmission device can ensure the clean and dewatering effect.It can be applied to road,hydropower and building industry.

model Screw diameter (mm) Length of Chute (mm) Max feeding size(mm) Capacity (t/h) Speed (r/min) power (kw) Water consumption (t/h) Overall dimension (LxWxH) (mm) Weight (t)
XI508 508 6705 ≤10 20 38 5.5 6-60 8000x2343x1430 2.67
XL610 610 7225 ≤10 40-50 32 7.5 6-63 8000X2050X1400 3.8
XL762 762 7620 ≤10 50-75 26 11 9-63 8545X2650X3862 5.23
XL920 920 8026 ≤10 100 18 11 10-80 8715X1632X2075 4.6
2XL920 920 8026 ≤10 150-180 18 11*2 20-160 8715X2602X2075 7.9
XL1 115 1115 8532 ≤10 175 18 15 20-150 9231X1833X2126 5.6
2XL1 115 1115 8532 ≤10 200-250 18 15*2 40-300 9231X2995X2126 10
