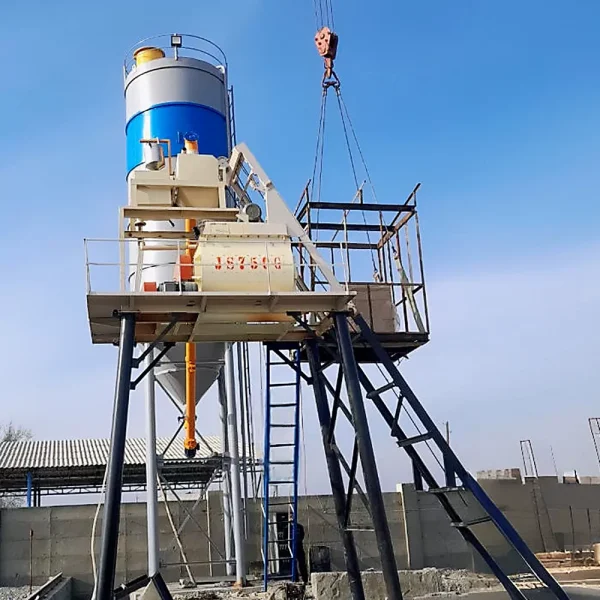

HZS35 Modular Concrete Mixing Plant PLD1200 High Production Efficiency
HZS35 Modular Concrete Mixing Plant PLD1200 High Production Efficiency
Specifications
Brand Name :
TORUI
Model Number :
HZS35
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P
Supply Ability :
1set / month
Delivery Time :
20-25 Work Days
Packaging Details :
Neutral / customers required
Mixer model :
JS750
Batching machine model :
PLD1200
Discharge height :
1.6-3.8m
Theoretical production capacity :
35m³/h
Total power :
75Kw
model :
HZS35
Working cycle time (s) :
72
Dimensions :
12922x13000x17245mm
Description

HZS35 concrete batching plant

Product advantages

The HZS35 concrete batching plant is also called the simple HZS35 batching plant. The 35 concrete batching plant uses a concrete mixer (JS750) with a discharge of 0.75 cubic meters each time, and each cycle is 72 seconds. HZS35 simple mixing station adopts fully automatic configuration, which is composed of material conveyor belt, mixing host and batching machine. It adopts a combined structure and modular unit, which is very convenient for installation and relocation. HZS35 concrete batching plant adopts PLD1600 concrete batching machine, which has accurate measurement and high production efficiency.

Users can also configure their own dump trucks, dump trucks, and mixer trucks for use. At the same time, they can also be modified according to the special requirements of users to meet the needs of users. The main machine of the concrete mixer is not only used in concrete construction projects. It can be used alone or as the supporting host of the mixing station (building).
Whole station part model HZS35
Theoretical productivity (m3/h) 35
Standard discharge height (m) 1.6—3.8
Working cycle time (s) 72
Dimensions (mm) (length X width X height) 12922x13000x17245
Total installed capacity (kw) 75
Mixer part model JS750
Batching machine part model PLD1200
Pneumatic system Air compressor model 1.0-7
Rated air volume (m3/min) 1.67
Rated exhaust pressure (MPa) 0.8
Motor power (KW) 18.5
Weighing system Sand and gravel measurement accuracy range (kg) accuracy +_2%
Cement measurement accuracy range (kg) accuracy +_1%
Water metering accuracy range (kg) accuracy +_1%
Additive metering accuracy range (kg) accuracy +_2%
