System

Password Security

2 Levels: Administrator or User

Video

Video Input

4 x 720P AHD or 4 x 960H / D1 / HD1 / CIF+1 x POE IPC(720P/1080P)

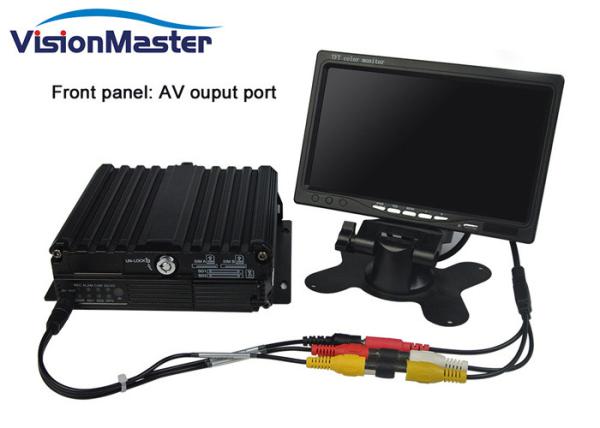

Video Output

2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )

Video Display

Single picture, 1~5 pictures

Signal System

PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec )

Image Compression

H.264 Main profile

Audio

Audio Input

4 Channels

Audio Output

2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )

Recording Format

Synchronized A/V recording

Recording Storage

Image Resolution

CIF / HD1 / D1 / 960H / 720P/1080P optional

Video Coding

ISO14496-10 Industry Standard

Audio Bit Rate

40Kbps

Storage

2 SD Card Slots, Up to 128GB each, Class 10 or higher

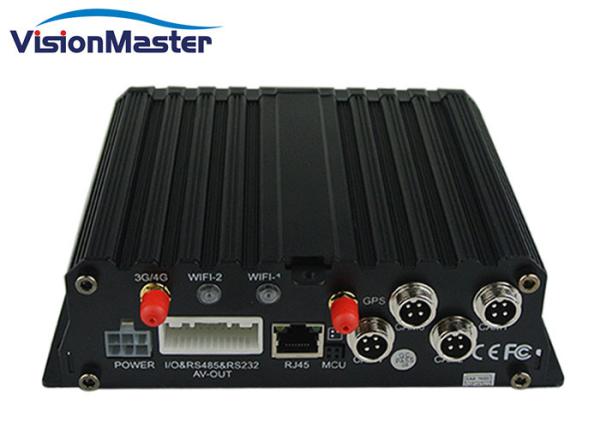

Communication Ports&Wireless Communication

RS485

1 Port for PTZ control or Data Device usage

RS232

2 Port for communication or data usage

RJ45 Network

1 Port of RJ45. For connection to an IP camera with maximun of 1080P

3G*

3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional internal module

4G*

4G(TDD-LTE / FDD-LTE) optional internal module to match local cellular carrier

Wi-Fi*

Internal Wi-Fi 802.11b/g/n (2.4 / 5.8 Ghz) option

Alarm

Alarm Input

8 Channels, Select trigger for either less than 1VDC or greater than 5VDC

Alarm Output

1 Channel, 12V output

Software

PC Playback

A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR

IVMS

Wireless (requires Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.

GPS*

Int'l Standard GPS*

Internal GPS module. Real-time geographic coordinates, speed information

G-Sensor

Internal G-Sensor

Supports 3 Axis Motion Detection with user set ranges for X, Y and Z coordinates

ACC Detection

≤4V

Power-off

≥6V

Power-on

Dimensions

170x142x50mm

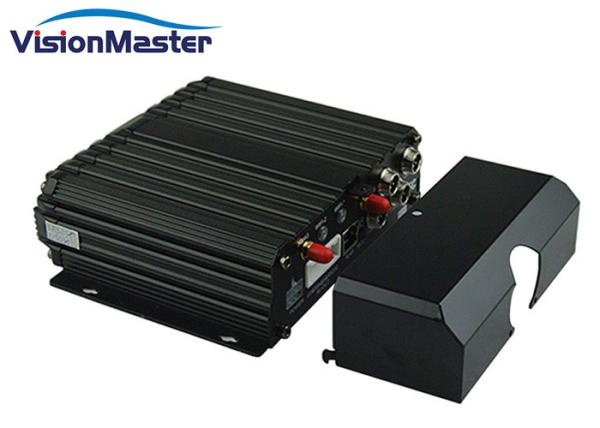

Including Security Cover 170x187x50mm
