4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
VisionMaster
Model Number :
VM-1404-HD
Price :
Negotiable
MOQ :
1 Set/Sets
Certification :
CE,FCC
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
2000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Color :
Black
Storage :
maximum 64GB SD card *2
Wifi module :
external 5.8GHz WIFI module
Communication :
GPS, WIFI, 3G, 4G optional
Video interface :
Aviation connector
Video Signal :
PAL,NTSC
Anti-vbration :
Yes
IO alarm sensor input :
Yes
Description

4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration

Function VM-1404-HD
System Language English / Chinese
Operation Interface Graphical User Interface (OSD menu)
Password Security 2 Levels: Administrator or User
Video Video Input Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input
Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input
Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher)
Video Output 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
Video Display Single picture, 1~5 pictures
Signal System PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec )
Image Compression H.264 Main profile
Audio Audio Input 4 Channels
Audio Output 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
Recording Format Synchronized A/V recording
Recording & Storage Image Resolution CIF / HD1 / D1 / 960H / 720P/1080P optional
Video Coding ISO14496-10 Industry Standard
Video Bit Rate CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
720P:4096Kbps ~ 400Kbps
1080P:4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate 40Kbps
Storage 2 SD Card Slots, Up to 128GB each, Class 10 or higher
Alarm Alarm Input 8 Channels, Select trigger for either less than 1VDC or greater than 5VDC
Alarm Output 1 Channel, 12V output
Communication Ports RS485 1 Port for PTZ control or Data Device usage
RS232 2 Port for communication or data usage
RJ45 Network 1 Port of RJ45. For connection to an IP camera with maximun of 1080P
Wireless Communication* 3G* 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional internal module
4G* 4G(TDD-LTE / FDD-LTE) optional internal module to match local cellular carrier
Wi-Fi* Internal Wi-Fi 802.11b/g/n (2.4 / 5.8 Ghz) option
GPS* Int'l Standard GPS* Internal GPS module. Real-time geographic coordinates, speed information

4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration

Optional Features:

- GPS function optional;

- 5.8GHz external WIFI module optional;

- 3G function optional;

- 4G function optional;

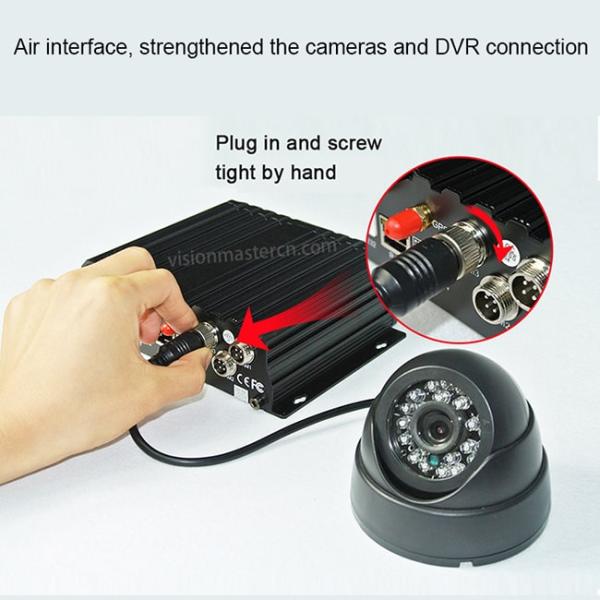

- Aviation connector / 4pin square Molex Connector optional(for Audio/video input).

Packaging & Shipping

4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration

Our Services

- Factory direct professional and high quality products for fleet management;

- Intelligent vehicle monitoring solution provider;

- OEM/ODM projects are welcome with technology support;

- Best before and after-sales services.

4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration

FAQ

Q: When 3G has neither report nor video, what should be done first?

A: Press INFO key to enter the system information page. Check whether the SIM card exists and view the signal strength as well as dial-up status, whether the antenna is in good contact, and then check the SIM to see whether it is out of traffic, the most basic judgment is to replace the SIM card, if the dial up failed with signal, then check whether the settings of center number and the port are correct. Moreover check whether the device number of the product is already occupied.

Q: The device is online, but why can I not see the video image?

A: Please set lower sub-stream to transmit image, the blocked or slow transmission speed situation may occur when the sub-stream frame rate is set very high and be affected by network uploading limit; poor network signal or intermittent will seriously affect the video transmission.
