Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
Specifications
Place of Origin :
Guangdong, China (Mainland), Guangdong, China (Mainland)
Brand Name :
Visionmaster
Model Number :
VC-519AHD960P
Price :
Negotiable
MOQ :
1PCS
Certification :
CE/FCC
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-5 working day for sample , 7-10 working day for bulk order
Packaging Details :
Neutral packing
Type :
Digital Camera
Sensor :
CMOS
Technology :
Infrared
Special Features :
Waterproof / Weatherproof
Resolution :
1280x960
Voltage :
DC 12V
Perspective :
120 degree
Waterproof :
IP68
Description

Waterproof metal housing
IR-CUT
lens:3.6mm
IR:10m(5×12PCS)
COLOR:BlackWaterproof IP68 AHD960P Wide Angle Bus CCTV Camera

Working environment and basic parameters:

* Working environment temperature: -30℃～60℃

* Environmental relative humidity:L 95%RH

* Working voltage:DC 12V±10%

* Working current:110mA±10%

* Video interface output impedance: 70Ω-80Ω(1.0Vp-p,75Ω)

* In the case of no-load, the video output signal should be between 0.8V and 1.2V

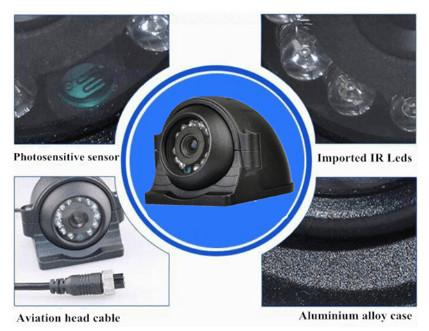

*Infrared isolation double loop optical glass;Constant current constant voltage technology and unique design,with the waterproof,heat dissipation functions.

Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For BusWaterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus

VC-519 Product Description ( Metal Side-View Camera )
Modle VC-519-AHD720P VC-519-AHD960P VC-519-AHD1080P
Image Sensor 1/4 CMOS 1/3 CMOS 1/3 CMOS
Resolution 1.0MP(720P) 1.3MP(960P) 2.0MP(1080P)
TV System PAL/NTSC
LUX IR-CUT
Infrared Lamp Φ5*12,infrared LED In Grade A
Mini Illumination 0Lux(Infrared LED Turn On)
Lens 3.6mm
Video Inout 1.0Vp-p/75Ω
IR 15M(Φ5*18pcs LED Lamp )
Gain Control AUTO
BLC AUTO
White Balance AUTO
Color Conditioning AUTO
S/N Ratio ＞48db(AGC OFF)
Gamma Correction ＞0.45
Temperature -10℃ - 50℃
Sync System Internal
Consumption <2.2W(daytime) <12W(night)
Waterproof standard IP55
Power Supply DC12V/1500mA
Features Infrared isolation double loop optical glass;Constant current constant voltage technology and unique design,with the waterproof,heat dissipation functions.
Application Car/Bus/Van/Ship/Vehicles for Mobile DVR NVR

Waterproof Vehicle CCTV Camera System IP68 AHD 960P Wide Angle For Bus
