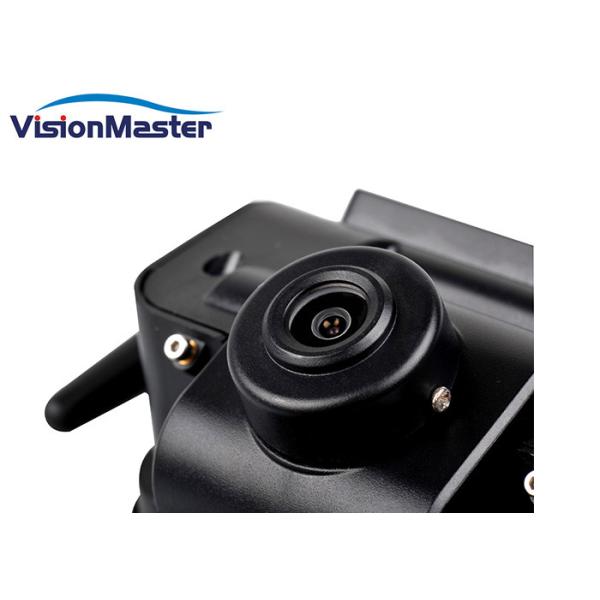

Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
OEM/Visionmaster
Model Number :
VK6
Certification :
CE, FCC, RoHS
Price :
Negotiable
MOQ :
1 Set/Sets
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000sets/month
Delivery Time :
3-5 days for sample order; Bulk order varied from 5-60 days based on order quantity and material, prouction schedule etc.
Packaging Details :
In a box together with all standard accessories
Product Name :
Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V
Weight :
1KG
TV system :
PAL or NTSC
Range of use :
car, bus, truck, ship
Voltage :
DC8~36V
Warranty :
12 months
Resolution :
1920x1080
Video Compression :
H. 264
Description

Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V

Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V

Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V

GPS Function”: GPS is working when the light is on

“Video Indicator’’: Video is recording when the light is on

“Power Indicator”: When device connect to DC power , this light will be on

“3G/4G Function”: When you use communication card , the light will be on

“Wifi Function’’: When wifi connected , the light will be on

“ Bluetooth Function” : Bluetooth work when the light is on

“ Emergency Alarm Button “ : It is working when light on .

“Wifi Swift Button” : “Wifi “ &” AP “ Swift “ON/OFF Button When Host working alone” : When this device is split into host & stent. When Host is working alone after split off , the light will be on

“ Photosensitive Sensor “ :The sensor is a detection device that can feel the information to be measured and can transform the sensed information into electrical information or other necessary information output according to certain rules to meet the information transmission, processing, storage and display , Recording and control requirements.

“Infrared Night Vision Function Inside Car “ : This function is help device work in low illumination environment.

Mini Bluetooth HD DVR Dash Cam 4 Channels 1920 X 1080 Resolution DC 8 - 36V

Item Parameter
OS Linux
Language Chinese/English/Others (can be customized)
Video Compression H.264 Compression Mode
OSD Overlays information such as date time and vehicle ID

GUI

Graphical User

Interface

Can connect to external LED screen. Setup system parameters with the remote

control.

Video Record System

Video Input

4 channel,2 channels built-in , 2 channels expansion; 080P AHD HD / SD / Mixed

Video Input
Video Output 1 composite video output
Preview Support 1/2/4 channels full screen preview
Resolution Support 1080P/720P/D1/CIF, MAX:4channels 1080P
Video Quality 0-7 levels, 0 is the highest level, 7 is the lowest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~4Mbps, multi levels video quality optional;

1080P: multi levels video quality optional;

Record Mode

The default setting is auto recording after power on. Timed recording, alarm

trigger recording and manual recording are supported.

Audio

 Audio Input 4CH ,2 channels built-in , 2 channels expansion
Audio Output 1 channel
Compression G.726 compression
Alarm Input 1CH level Alarm Input
Alarm Output 1CH level Signal Output
Communication Interface 1CH RS232 &1 channel RS485

Wireless transfer

Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with

GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE
Position Support Built GPS/BD Module,can make playback analysis of vehicle routing
G-Sensor Support G-sensor

Video Storage

 Storage Max support 2X256GB SD Card
