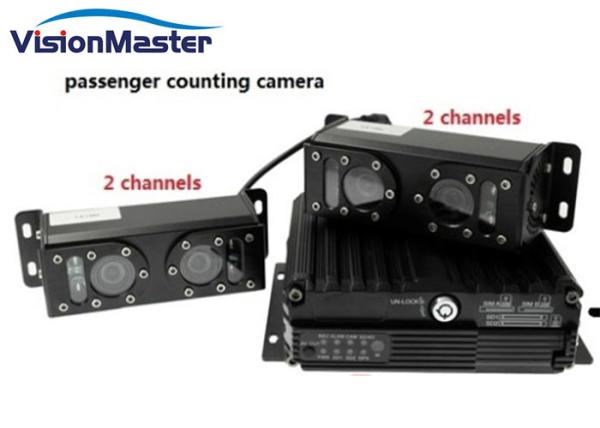

2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Visionmaster
Model Number :
Passenger Counting System
Price :
Negotiable
MOQ :
1 Set/Sets
Certification :
CE FCC
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
2000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Product name :
2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment
Color :
Black
Storage :
Max support 128 GB SD card *2
Wifi module :
external 5.8GHz WIFI module
Communication :
GPS, WIFI, 3G, 4G optional
Video interface :
Aviation connector
Video Signal :
PAL,NTSC
RJ45 port :
Yes
Anti-vbration :
Yes
IO alarm sensor input :
Yes
Description

2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment

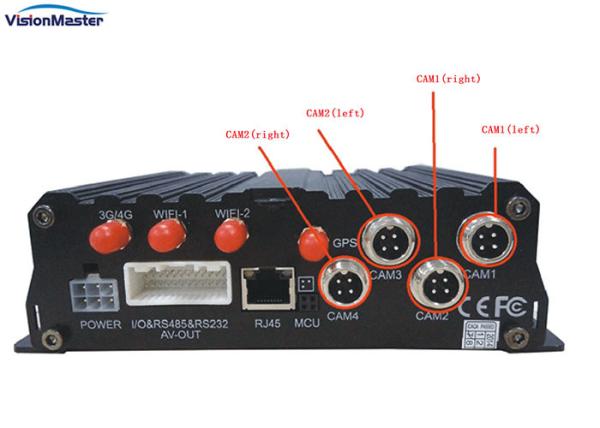

1.1 Electrical Specifications

Power supply +8～+36V 8V～36V, Check the supply voltage of the vehicle battery before use; if it is supplied with more than 36V for a prolonged period, the device may be damaged.
Power output 12V 12V(+/-0.2V), max. current: 3A
ACC detection ≤4V Power off
≥6V Power on
Video input impedance 75Ω Each video input impedance: 75Ω
Video output voltage 2Vp-p 2VP-P CVBS output analog signal which should be adapted by 75Ω of input impedance from the display unit.
I/O interface 1V or below Low level alarm
5V or above High level alarm
Working temperature -25℃ ~ 75℃ In a well-ventilated place
Size 170(W)mmx50(H)mmx142(L)mm

2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment

2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment

2 X 128GB SD Card Infrared Counting System , 4ch People Counting Equipment

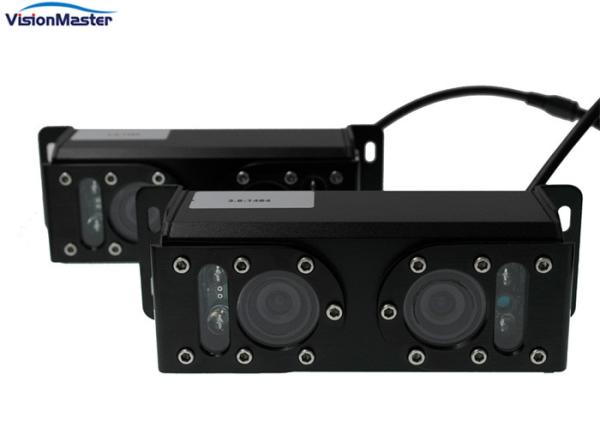

specification:

Image Sensor 1/3” Color SONY CCD
TV System PAL/NTSC
Horizontal Resolution 700TVL
Lens optional f3.6 / 2.8 mm
Effective Pixel Arrey PAL: 976Hx582V; NTSC: 976(H) x 494(V)
Min illumination 0.01 Lux at F1.2
white balance Automatic
Electronic shutter 1/50-1/80000 (s) 1/60-1/80000(s)
Gain automatic gain control
S/N Ratio >48 dB
IR &Infrared LED Range 4 PCS IR LED
IR distance 3m
Horizontal angle of view (90° ) F3.6mm
Work current 210mA
Power Supply 12V DC ±10%
Dimensions 180×64×55 mm(L×W×H)
Net Weight 600 g
Operational Temperature -20 ~ +55° C
Operational humidity 10%~90%
vedio interface Aircraft Round Connector Plug
