Specifications
Brand Name :
VisionMaster
Model Number :
VC-521-AHD960P
Certification :
CE,FCC
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Color :
Black
TV Systems :
NTSC/PAL
Resolution :
1280x960
Voltage :
DC 12V
Perspective :
120 degree
Minimum Illumination :
0Lux(Infrared led turn on )
Operating Temperature(Deg. C) :
-10°C~ +45°C
Lens :
2.8mm(3.6mm Optional)，M12*P0.5
Dimension :
Ф69*58(mm)
Description

AHD 960P Waterproof Car Reversing System Vehicle Waterproof Camera

Product features:

★ Support AHD and Analog standard definition AHD output,the image is crisp and clear,960p.

★ Adopt motor-driven ICR filter switch, stable performance, stronger anti-vibration ability.Completely solve the problem of color deviation of green plants under ultraviolet rays.

★ Support ICR switch, achieving day and night surveillance.

★ High color rendition, the reality image.

AHD 960P Waterproof Car Reverse Camera System For Vehicle 120 Degree DC 12V

Application scenarios:

common used in school bus, Bus, truck etc, rear view camera.

AHD 960P Waterproof Car Reverse Camera System For Vehicle 120 Degree DC 12V

Parameters:

Model VC-521-AHD960P
Image Sensor 1/3" progressive scan CMOS
Horizontal Resolution 1.3Mega pixel
TV system PAL/NTSC
Effective pixels 1280(H)*960(V)
Minimum Illumination 0.01Lux@(F1.2,AGC ON),0Lux with IR
S/N ≥44dB
Day and night switch Motor Driver ICR Filter Switch (Magnetic Valve Driver ICR optional)
Auto Gain Control Support
Back light compensation Support
White Balance AUTO
Digital Noise Reduction Adaptive digital noise reduction,2D/3D-DNR
Electronic Shutter AUTO/1/50(1/60)-1(50,000Sec)
Video Output Follow AHD standard
Image Function Original/Reverse image
Output Adapter 4P aviation head cable
Audio input Optional (Built-in microphone)
Lens 2.8mm(3.6mm Optional),M12*P0.5
IR LEDS Quantity 12 PCS Φ5 LEDS
IR distance 10～15 meters
IP grade IP66
Operating Temperature/Humidity -30°C~+70°C/Humidity≤90%(No condensation)
Power Supply DC12V±10%
Power Consumption ≤2.5W

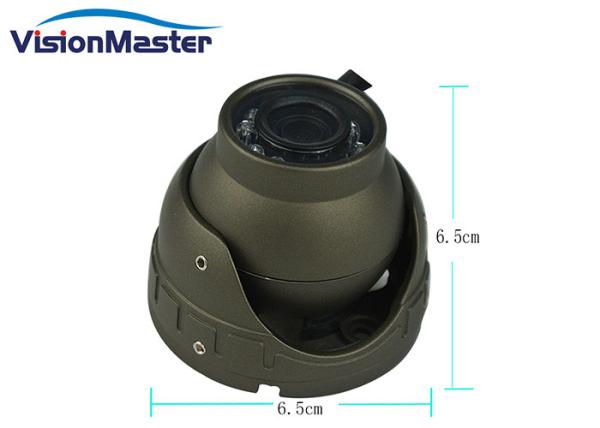

Dimension Ф69*58(mm)
