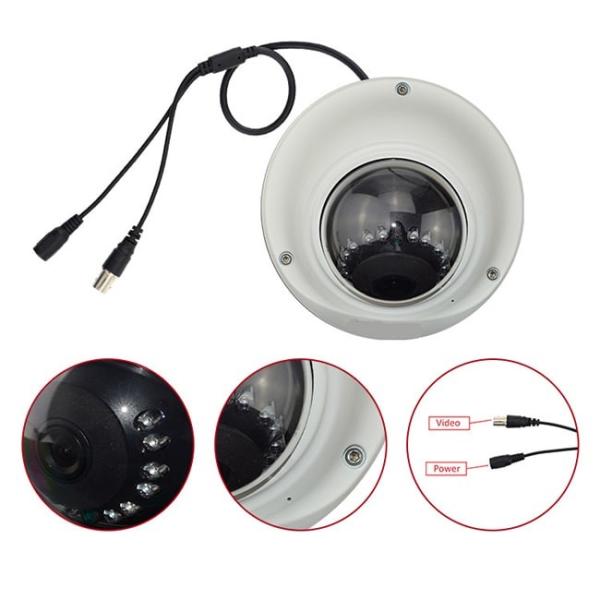

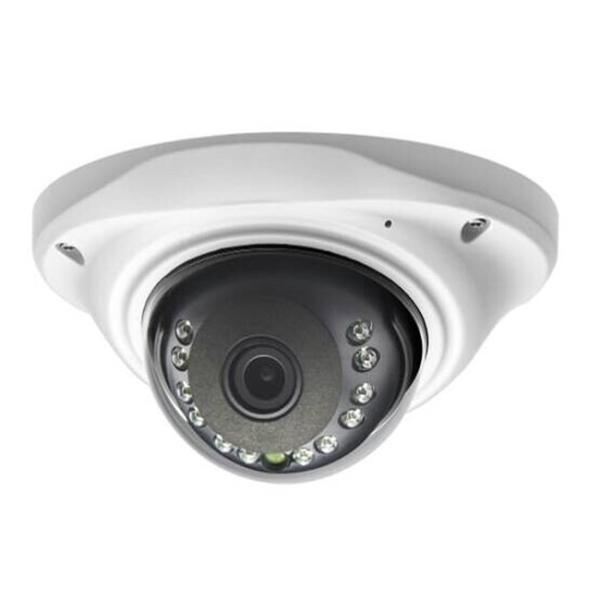

High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
Specifications
Place of Origin :
Guangdong, China (Mainland), Guangdong, China (Mainland)
Brand Name :
Visionmaster
Model Number :
VC-540F-AHD960P
Price :
Negotiable
MOQ :
1 Piece/Pieces
Certification :
CE/FCC
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
5000 pieces /month
Delivery Time :
3-5 working day for sample , 7-10 working day for bulk order
Packaging Details :
Neutral packing
Type :
Analog Camera
Style :
Box Camera
Sensor :
CMOS
Technology :
Infrared
Special Features :
Waterproof / Weatherproof
Color :
Black
TV Systems :
NTSC/PAL
Image Sensor :
1/4" CMOS Sensor
Perspective :
180 degree
Minimum illumination :
0Lux(Infrared led turn on )
Operating Temperature(Deg. C) :
-10°C~ +45°C
Waterproof :
IP65
Product name :
High Definition 960P CMOS Night Vision 1.0MP AHD Car Camera
Lens :
1.44mm
Description

High Definition 960P CMOS Night Vision 1.0MP AHD Car Camera

Working environment and basic parameters:
Working environment temperature: -30℃～60℃
Environmental relative humidity:L 95%RH
Working voltage:DC 12V±10%
Working current:110mA±10%
Video interface output impedance: 70Ω-80Ω(1.0Vp-p,75Ω)
In the case of no-load, the video output signal should be between 0.8V and 1.2V

High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car

High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car

Model VC-540F-960P
Image Sensor 1/2.7" progressive scan CMOS
Horizontal Resolution 2.0Megapixel
TV system PAL/NTSC
Effective pixels 1920(H)*1080(V)
Minimum Illumination 0.01Lux@(F1.2,AGC ON),0 Lux with IR
S/N ≥40dB
Day and night switch ICR IR filter automatically switches
Auto Gain Control Support
Back light compensation Support
White Balance Auto / Manual
Digital Noise Reduction Adaptive digital noise reduction, 2D/3D-DNR
Electronic Shutter AUTO/1/50(1/60)-1(50,000Sec)
Video Output Follow AHD / TVI / CVI / CVBS standard (4 in 1 output)
Digital WDR Support
Penetrating fog Support
Lens 1.44mm megapixel lens,M12*P0.5
Visual Angle Ceiling mounted :360°,Wall mounted: 180°
IR LEDS Quantity 12 PCSΦ5 LEDS
IR distance 5～10eters
Operating Temperature/Humidity -30°C~+70°C/Humidity≤90%(No condensation)
Power Supply DC12V±10%
Power Consumption ≤3W
Dimension Ф120*61(mm)
Common used in hall, supermarket, school, factory, office etc, indoor large area monitoring

High Definition Vehicle CCTV Camera System 960P CMOS 1.0MP AHD For Car
