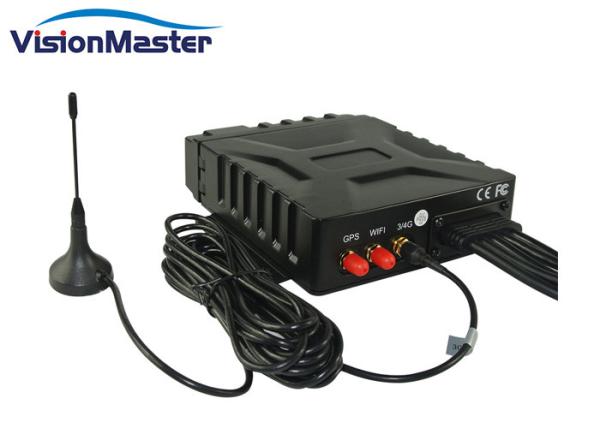

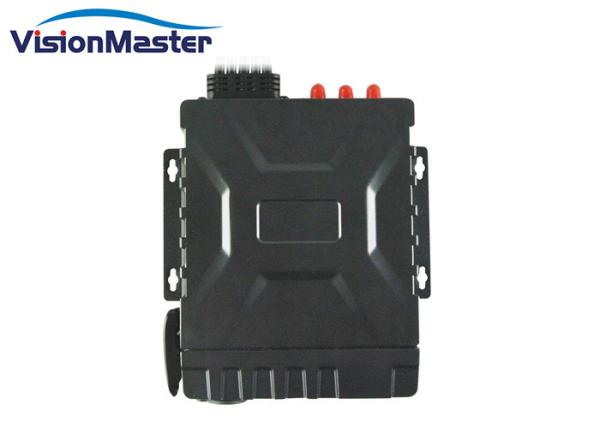

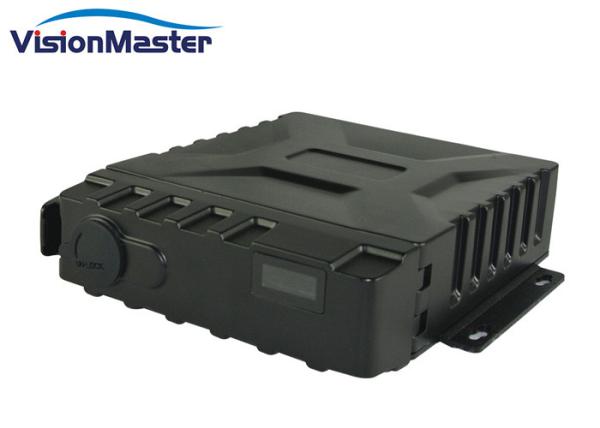

4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector
4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector
4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector
4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector
4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector
4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector
Specifications
Brand Name :
OEM/VisionMaster
Model Number :
VM-3504-HD
Certification :
CE,FCC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
2000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Product name :
Waterproof IP67 supports 4 CH GPS Mobile HD DVR WiFi 3G/4G DVR with SSD
Storage :
2TB SSD + sd card slot x 1 (128GB/sd card)
Video interface :
Aviation Connector
Image Resolution :
4 x AHD +1 x IPC
Video input :
4 Ch
Type :
AHD Mobile DVR
Video Compression :
H. 264
Playback :
4ch Playback
Description

Car Dvr 4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI

Installation Environment

  • To extend the service life, please try to install the device in a place where vibration is weak;
  • To ensure normal heat dissipation, do not install the device in a poorly-ventilated area (such as trunk), and also keep about 15 cm away from other objects on the same level;
  • The device shall be horizontally installed and protected against water, humidity and lightning; in addition, keep the vehicle still during installation to prevent damage to the device due to falling off;
  • To ensure safe operation, keep the device, camera, cables and other accessories out of reach of passengers and driver.

4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector

4 Channel Full HD Vehicle Mobile DVR MDVR GPS 3G WIFI With Aviation Connector

Function VM-3504-HD
System Language English / Chinese
Operation Interface Graphical User Interface(OSD menu)
Password Security 2 Levels: Administrator & User
Video Video Input A:Supports 4 channels CIF/HD1/D1/960H camera Video input
B:Supports 4 channels 720P AHD camera Video input
C:Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
D:Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input
E:Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD Video input
Video Output 1 Channels (Rear Panel on RJ45&AV-OUT Port)
Video Display Single picture, 1~5 pictures
Signal System PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec )
Image Compression H.264 Main profile
Audio Audio Input 4 Channels
Audio Output 1 Channel
Record Format Synchronized A/V recording
Recording & Storage Image Resolution CIF / HD1 / D1 / 960H / 720P/1080P optional
Video Coding ISO14496-10 Industry Standard
Video Bit Rate CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
720P:4096Kbps ~ 400Kbps
1080P:4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate 40Kbps
Storage 1 SSD and 1 SD card
Alarm Alarm Input 4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output 2 Channel, 12V output
Communication Ports RS485 1 Port for PTZ control or Data Device usage
RS232 1 Port for communication or data usage
RJ45 Network 1 Port of RJ45, For connection to an IP camera with maximum of 1080P
USB 1 Ports for USB 2.0, download video files & upgrade firmware
Wireless Communication* 3G* 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G* 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi* Internal Wi-Fi 802.11b/g/n ( 2.4 /5.8 Ghz) optional
GPS* Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor Internal G-Sensor Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software PC Playback A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade Local or Remotely Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input +8～+36V 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output 12V 12V(+/-0.2V),Max 3A
ACC Detection ≤4V Power-off
≥6V Power-on
Video Input Resistance 75Ω 75Ω
Video Output Voltage 2Vp-p 2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port <1V Low voltage trigger
>5V High voltage trigger
Operational Temperature -25℃～80℃ Install in well ventilated area, protected from moisture, heat, dust and vibration. Confined by SSD temperature also.
Dimensions 146*155*38mm

Correspondence of Picture Quality and Record Space

Picture Quality

Resolution

 1 2 3 4 5 6 7 8

Record space

M/h

 CIF 675 563 450 338 225 167 113 56
HD1 900 788 675 563 450 338 225 169
D1 900 788 675 563 450 338 225 169
960H 900 788 675 563 450 338 225 169
720P 1800 1350 900 675 450 338 225 169

The above table shows the record space required for one-way image per hour. This table is for reference only. The size of video file is related to illumination change and object motion of the current channel. Video file may be much smaller. To save space, you can disable audio or undesirable video channel.
