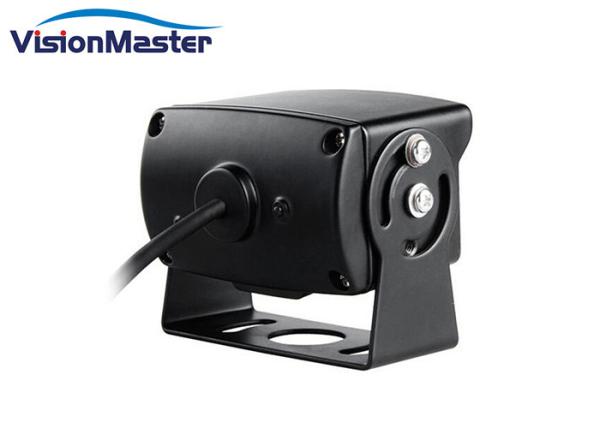

Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside
Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside
Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside
Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside
Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside
Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside
Specifications
Brand Name :
VisionMaster
Model Number :
VC-530-AHD960P
Certification :
CE,FCC
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Color :
Black
TV Systems :
NTSC/PAL
Resolution :
1280x960
Voltage :
DC 12V
Perspective :
120 degree
Minimum Illumination :
0Lux(Infrared led turn on )
Operating Temperature(Deg. C) :
-10°C~ +45°C
Size :
101*69*73
Description

Product Overview:
★ High resolution,the image is crisp and clear
★ High signal-to-noise ratio,the image is clean and pleasant
★ Support ICR filter switching function,achieving the real day and night surveilance
★ Support auto electronic shutter function,adjust to different monitoring environment
★ Aluminum alloy shell,excellent heat resistant performance

Technical parameters
Model VC-530-AHD960P
Image Sensor 1/3"COMS
Horizontal Resolution 2.0Megapixel
TV System PAL/NTSC
Effective Pixel 1920*1080
Minimum Illumination Color 0.01Lux;IR ON 0 Lux
S/N Ratio ≥69dB(AGC OFF)
Day/Night mode ICR IR filter automatically switches
Auto Gain Control AUTO
Backlight compensation AUTO
White Balance AUTO
Noise Reduction 2D/3D
WDR Digital WDR
Lens 2.8mmMegapixel Lens ,M12*P0.5 Port
Electronic Shutter AUTO/1/50(1/60)-1(100,000Sec)
Video Output AHD VIDEO(960P)
IR Leds Qty 18 Pcs￠5 Leds
IR Distance 10-15 Meters
Waterproof Grade IP66
Operating Temp. -20°C~+70°C
Power Supply DC12V±10%
Power Consumption ≤4W
Size 101*69*73

Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside

Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside

Precautions

The camera is placed in a convenient location for installation and fixation, which is not easily blocked or damaged, covering the scene to be monitored.

1.Make sure the power is off before installation

2.Check and confirm the availability of right power supply. Wrong voltage will inflict damage to component(s) in camera

3.Do not use camera in overheated and humid environment.Keep a good ventilation so as to reduce fire and outrage.

4.Only the professional technicians are entitled for installation and repair. By no means, this camera shall not be repaired or dismantled on customer`s own.Manufacturer holds no responsibility in case of unauthorized repair,and use of uncertified spare parts.

Attention: the base or bracket shall have the strength to hold weight that amount to three cameras in all

Security Vehicle CCTV Camera System 120 Degree DC 12V 1280x960 For Outside

More details, pls freely contact us, Skype: vm802@visionmastercn.com

Company

Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective.

We have a professional team of more than 100 people, including more than 30 engineers.
Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions.
Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success.
