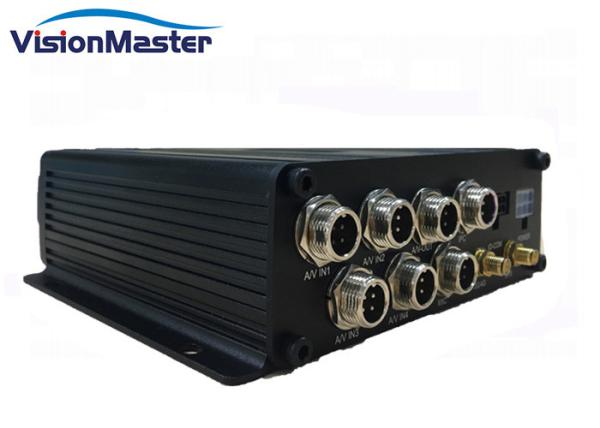

1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
Specifications
Brand Name :
VisionMaster
Model Number :
VM-6004
Certification :
CE, FCC, RoHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
2000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Compression :
H.265
Warranty :
1Years
Power :
DC8V - +36V
Function :
3G 4G WIFI GPS Optional
Wifi :
WIFI Optional
Language :
Chinese/English
Video output :
VGA & A/V
Video input :
4 Channels,1920*1080P
Description

4 Channels 1920 * 1080P 4G Mobile DVR With GPS 3G WIFI Car Black Box

Brand Multifunctional Dual SD Mobile DVR
Model VM-6004-1080P
AI Functions Support Driver Face ID &Comparison ,DMS(Option)

Interface

 USB*2(USB Tools & Fireproof black box)

Video

4CH AHD1080P/720P

1CH IPC Video Input(Option) CVBS*1 output,HDMI*1 output

Support 100M/1000M Net Port

IPC 1080P Input
IO_IN*4, IO_OUT*1,RS485*1,RS232*2
12V Output,Max: 1A
Video Compression Compatible H.265/H.264 Video Compression Voltage DC8V—36V Input
Audio 5 Input,2ch Output,G.711A Audio Compression Power < 6W (No Peripheral)

Wireless Communication

4G:TD-LTE/FDD-LTE

3G:EVDO/WCDMA/TD-SCDMA

WIFI/BT (optional)

Operation Environment

-25℃—＋75℃
Storage

2*SD(512GB Max) ,

External USB interface for data backup

 Humidity 10％—95％
Satellite Position Beidou/GPS/GLONASS(Option) Protection Level IP43
Control Mode IR Remote Control,Tools APP,Platform Dimension 140 x 160x 48mm(L x W x H)

Product Description

The VM-6004-1080P series is a cost-effective and multifunctional device with good expansible functions, which integrates vehicle video surveillance and DMS (facial recognition and driving behavior analysis system).
The terminal adopts the Hi3520D V400 scheme with built-in ARM A7 dual-core processor and a main frequency up to 1.3Ghz.
Combined with the Linux operating system, it perfectly supports 4-channel AHD 1080P resolution, and realizes the perfect implantation of facial recognition and driving behavior analysis algorithm.
Combined with the most advanced image processing tech-H.265 video compression/decompression tech(compatible with h. 264), the network/positioning/RFID/technology which can realize video recording, driver identify recognition, driver behavior analysis/fatigue detect, car information records, and coupled with big data platform which can realize real-time monitoring, abnormal driving behavior alarm, management of motor vehicles remotely and driving state data analysis.
In addition, the product has a rich expansion interfaces, can be connected to 4 alarm input sensor, reserved 232/485 interface, dual USB interface design, CVBS/HDMI two video output, support 100M/1000M network port, support IPC 1080P input.
VM-6004-1080P series products are characterized by simple and tidy appearance, super vibration resistance, flexible installation, powerful function and high reliability.

1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional

1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional

1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional

Note:
1.For the H.265 video compression device, its code stream can be half of H.264 compression device.
2.Calculation formula:File size ( Gbps ) =code stream ( Kbps ÷8×3600×recording time(hour)÷1024÷1024.
Take D1 resolution as example, under H.264 video compression, 1 hour recording file: 3600*2048Kbps/8/1024=900M
Take D1 resolution as example, under H.265 video compression, 1 hour recording file: 3600*1024Kbps/8/1024=450M
