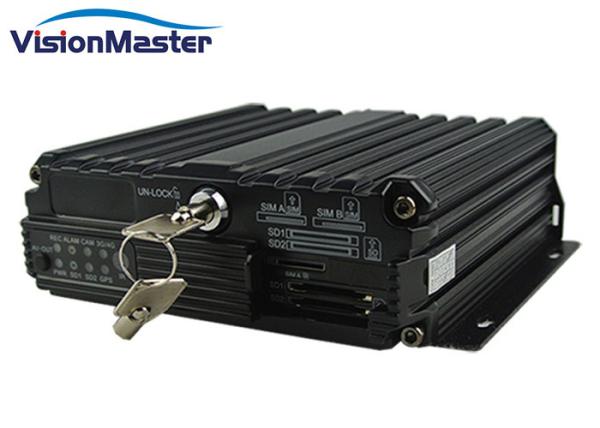

Double Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC Certificated
Double Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC Certificated
Double Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC Certificated
Double Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC Certificated
Specifications
Brand Name :
VisionMaster
Model Number :
VM-1404-HD
Certification :
CE,FCC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
2000 sets / month
Delivery Time :
3-5 work days for samples,15-30 work days for large orders
Packaging Details :
Neutral packing
Video input :
4 AHD + 1 APC
Video Compression :
720P AHD and 1080P/720P IPC POE
Storage :
SD card slot * 2 (128GB/SD Card)
Function :
WIFI, GPS, 3G, 4G, G-sensor
Alarm Input :
8 Channels
Certificate :
CE, FCC, RoHs
Description

4ch Double sd card bus Truck hd car 720p mobile dvr competitive price

Installation Environment

  • To extend the service life, please try to install the device in a place where vibration is weak;
  • To ensure normal heat dissipation, do not install the device in a poorly-ventilated area (such as trunk), and also keep about 15 cm away from other objects on the same level;
  • The device shall be horizontally installed and protected against water, humidity and lightning; in addition, keep the vehicle still during installation to prevent damage to the device due to falling off;
  • To ensure safe operation, keep the device, camera, cables and other accessories out of reach of passengers and driver.
Function Performance
System Language English / Chinese
Operation Interface Graphical menu operation interface(OSD menu)
Password security Permissions setting of administrator & user
Video Video input 4 channels support CIF/HD1/D1/960H/720P AHD camera
RJ45 X 1, for IP camera or external Wi-Fi module (802.11ac)
Video output 2 channels (1 as φ3.5 Phone Jack, 1 at 24pin connector)
Video display Single picture, 4 pictures
Signal system PAL / NTSC
Image compression H.264 Main profile
Audio Audio input 4 channels
Audio output 2 channels (1 as φ3.5 Phone Jack, 1 in the 24pin connector)
Record format Synchronized video & audio recording
Recording& Storage Video resolution Support 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Support 4 channels 720P AHD+1 channels IP camera Hybrid HD Video input(Coming in soon)
Video coding ISO14496-10
Video bit rate CIF: 1536Kbps ~ 128Kbps,
D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
8 grades of image quality optional, Grade1 as best, Grade8 as lowest
Audio bit rate 8KB/s
Storage 2 SD card storage optional, up to 128 GB / card
Alarm Alarm input 8 channels, alarm activated by low voltage (<1V) or high voltage (>5V)
Alarm output 1 channel, 12V output
Communication Ports RS485 RS485 ×1
RS232 RS232 ×2
GPS Built-in GPS module. Real-time geographic coordinates, speed information
G-Sensor Built-in G-Sensor
Wireless Communication 3G Built-in 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) module optional
4G Built-in 4G(TDD-LTE / FDD-LTE) module optional
Wi-Fi Built-in Wi-Fi( 2.4 / 5.8 Ghz) optional
Software PC playback Video files playback in PC with analysis of the vehicle status
CMSV6 / IVMS Wireless real-time video & audio monitoring, GPS, alarm, etc.
Software Upgrade Upgrade through SD card



Double Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC Certificated

  • Avoid Electric Shock and Fire
  • 8V-36V DC power supply is used for this device. Please note the positive and negative terminals during connection to prevent short circuit;
  • Please power the device off before connecting any peripheral ;
  • Do not touch the power supply and the device with wet hands;
  • Do not spray liquid on the device to prevent internal short circuit or fire;
  • Do not place any other device directly on top of the camera;
  • Do not disassemble the housing without authorization to avoid damage or electric shock;


Double Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC CertificatedDouble Sd Card 1080P Mobile DVR Bus Truck Hd Car 4ch CE FCC Certificated
