Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Mobile Hydraulic 8m 19ft 450kg capacity Self Propelled Scissor Lift Platform
Specifications
Brand Name :
Jesh
Model Number :
SS0812HM
Certification :
CE,ISO,IPAF
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1500pcs per month
Delivery Time :
15 days
Packaging Details :
standard factory package
Lift drive / actuation :
Hyraulic electric ,DC
Dimensions :
Length 2.48m*Width 1.14m*Height 1.82m(platform height up to 8.1m)
Platform extendable :
0.9m
platform width :
1.14m
Max.drive speed :
8.1m
Max.Working height :
10.1m
Max.Platform height :
8.1m
Platform capacity :
450kg
capacity on extension :
120kg

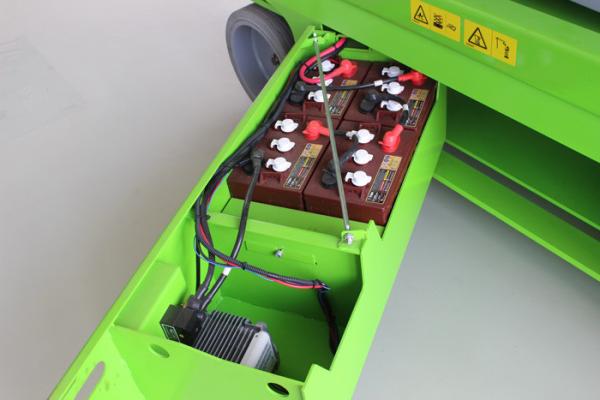

battery :
24v/225ah
Engine :
optional for your choose : perkins, Kohler,Deutz,Commins,Yanmar
OEM,ODM :
available
Description

Technical Parameters

Model SS0812HM
Dimentions Metric
Working Height 10.1m
Platform Height 8.1m
Platform Length 2.27m
Platform Length-Extended 3.17m
Platform Extension 0.9m
Platform Width 1.14m
Height -Unfolded 2.35m
Height-folded 1.82m
Wheelbase 1.87m
Min. Ground Clearance-stowed 10cm
Min. Ground Clearance-Raised 2cm
Productivity
Platform capacity 450kg
Extension platform capacity 120kg
Drive Speed 3.5km/h
Gradeability 25%
Raise/Lower Speed 32/42sec
Turning Radius(Inside/outside) 0/2.1m
Tire 40.5x12.7cm
Power Electric
Engine Bettery 24V/225Ah
Hydraulic Oil Tank Capacity 25L
Machine Total Weight 2550kg

Packaging & Shipping

Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.

Shipping by sea with around 40-45 days arrrive your destination port.

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online

Company Information

Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
