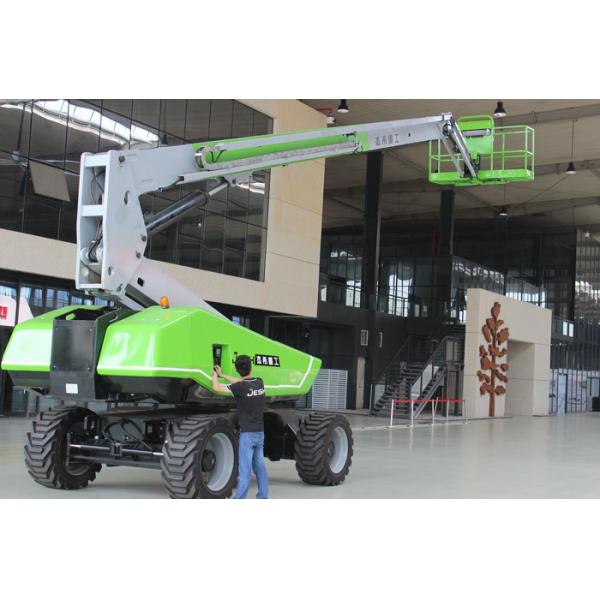

Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work
Specifications
Brand Name :
JESH
Model Number :
TB27J
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
US$80000-US$140000
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
10-30days
Packaging Details :
packed as per internaitonal export standard.
Feature :
telescopic boom lift
Lift Drive/Actuation :
Hydraulic
Platform Height :
27m
Platfrom Capacity :
360kg
Power :
Diesel engine
Weight :
14500kg
Application :
factory building, shipping building etc.
Color :
Light Green gray / as per your demand
Description

27M Telescopic boom lifts Main specs:

  • Max.Working Height: 29m
  • Max.Horizontal Reach: 21.1m

Important features:

  • Using the axie integrated 4WD system, better off-road performance.
  • Travel at low speed and high speed automatically,4-wheel drive
  • Powerful diesel engine, max gradeability up to 45%.
  • Overload sensor system and fault diagnosis system
  • Adopting DC12V battery pack, full proportional control, joystick with thumb tog- gle switch, Equipped with travel confirm, tilt alert, descending and moving alert.

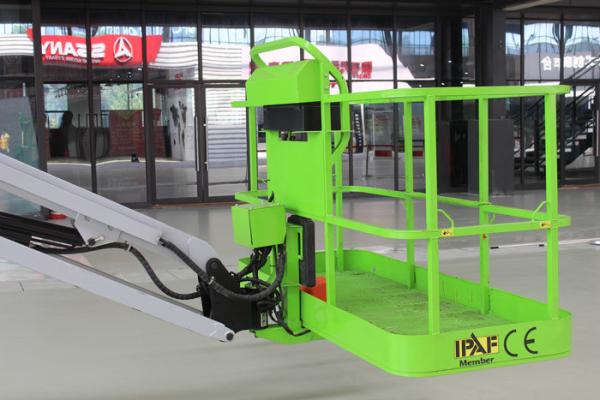

  • Equipped with Platform anti-extrusion device,start stop protection when extrusion occurs.
  • The whole series of parts is universal,lower parts storage cost, more efficient maintenance.
  • All the parts are at both sides of the chassis,making the maintenance more convenient.
  • The center of gravity moves down,the stability of the machine is stronger
  • Emergency pump for emergency descending and boom retraction.
  • Slide out tray and lockable turntable.
  • Container transport available

27M telescopic boom lift covers working height from 27m-43m, which is suitable for indoor or outdoor use on rough ground.

It is featured with advanced working height and outreach ability beyond the industry, which allow you to locate the working point accurately.

With outstanding gradeability and rough terrain performance, the working efficiency is greatly improved.

Technical Parameters

Model TB27J
Dimentions Metric
Max Working Height 29.0m
Max Platform Height 27.0m
Max Horizontal Outreach 21.1m
Extendable depth downward 1.6m
Platform Width 0.91m
Platform Length 2.44m
Height-Stowed 3.01m
Length-Stowed 14.4m
Transportation 11.9m
Width 2.48m
Wheelbase 3.0m
Ground Clearance-Center 0.39m
Productivity
Load capacity(unrestricted) 230kg
Load capacity(restricted) 360kg
Tail swing 1.574m
Min. Turning Radius(inside/outside) 3.7m/6.6m
Turntable Swing 360°continuous
Platform Rotation 160°
Jib rotation -60°~75°
Drive Speed(stowed) 5.4km/h
Drive Speed(extended) 1.1km/h
Control DC12V Proportional
Drive type 4 Wheels
Max. Grade ability 45%
Tire-solid foam filled( Dia.×Width) 1033×450mm
Power 　
Engine Kohler KDI 2504 TCR(55.4kW)
Fuel Diesel
Hydraulic Oil Tank Capacity 150L
Fuel Tank Capacity 120L

Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work

Packaging & Shipping

Jesh Standard packing,The machine can be disassembly load into a 40HQ container.

Straight 88ft 27m telescopic boom lift with 360kg capacity for repairs aerial work

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online.

Company Information

Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
