Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance
Specifications
Brand Name :
JESH
Model Number :
SS1212HM
Certification :
CE
Place of Origin :
China
MOQ :
1Unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P, D/A
Supply Ability :
4000 Units per month
Delivery Time :
45 days
Packaging Details :
Regular factory packing
Product name :
Hydraulic scissor lift
Working Height :
14m
Capacity :
320KG
Max drive speed :
3.5km/h
Platform extendable :
0.9m
Ground clearance-raised :
2cm
Battery :
24V/260Ah
Hydrualic oil tank capacity :
25L
Material :
High Impact steel structure
Table Size :
2.27*1.14m
Overall Dimensions :
2.48*1.14*2.6m
Engine :
optional (perkins, Kohler,Deutz,Commins,Yanmar)
Description

14m hydraulic scissor lift Data information:

Model SS1212HM
Dimentions Metric
Working Height 13.8m
Platform Height 11.8m
Platform Length 2.28m
Platform Length-Extended 3.18m
Platform Extension 0.9m
Platform Width 1.12m
Height -Unfolded 2.60m
Height-folded 2.08m
Wheelbase 2.07m
Min. Ground Clearance-stowed 10cm
Min. Ground Clearance-Raised 2cm
Productivity
Platform capacity 320kg
Extension platform capacity 120kg
Drive Speed 3.5km/h
Gradeability 25%
Raise/Lower Speed 68/42sec
Turning Radius(Inside/outside) 0/2.1m
Tire 40.5x12.7cm
Power Electric
Engine Bettery 24V/260Ah
Hydraulic Oil Tank Capacity 25L
Machine Total Weight 2898kg

Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance

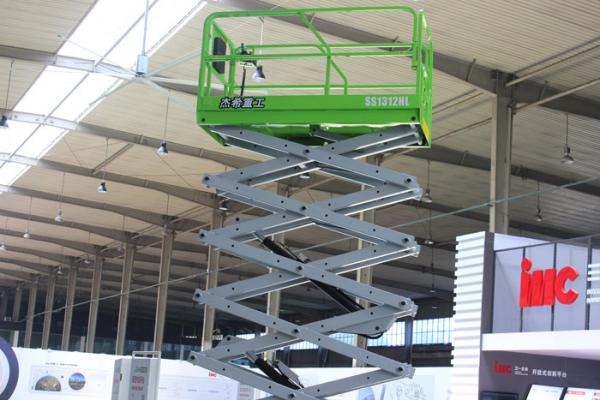

JESH HM scissor lift series adopts electric to drive the hydraulic motor,the working height covers 3m to 14m,the maximum load is 320kg,using the battery as the electric to drive the motor as the power,energy saving and enviromental protection,it is suitable for indoor flat ground and high altitude operation environment with high environmental requirements such as shoping malls,residential areas,factory or building maintenance and so on.

Chassis:

  • Unique design of bidirectional retracting scissor arm.
  • Slide out tray on left and right,easy for maintenance.
  • Forklift hole on the front for loading and discharging.
  • Unique pothole protection design.
  • Orbital plane,easy for cleaning.
  • Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Performance

  • Proportional controls
  • Extended platform
  • Folding guardrails Platform
  • Self-lock gate on platform
  • Emergency lowering system
  • Hour meter
  • Safety brackets
  • Flashing beacon
  • Solid non-marking tires
  • All motion alarm
  • Emergency stop button
  • Automatic brakes system
  • Active pothole protection system
  • Tilt sensor with alarm
  • Charging protection system
  • Onboard diagnostic system

Packaging & Shipping

Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.

Shipping by sea with around 40-45 days arrrive your destination port.

Electric working height 14m with 320kg capacity hydraulic scissor lift for maintenance

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online.

Company Information

Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
