Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor
Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor
Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor
Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor
Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor
Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor
Specifications
Brand Name :
JESH
Model Number :
SS1212HM
Certification :
CE ISO AS/NZS 1418.10
Place of Origin :
China
MOQ :
1Unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P, D/A
Supply Ability :
4000 Units per month
Delivery Time :
45 days
Packaging Details :
Regular factory packing
Color :
Green
Working Height :
13.8m
Platform Height :
11.8m
width :
1.14m
Length :
2.48m
Capacity :
320KG
Control mode :
Control box
Material :
High-duty Steel Structure
Engine :
optional (perkins, Kohler,Deutz,Commins,Yanmar)
Weight :
2898kg
Description

Product Description:

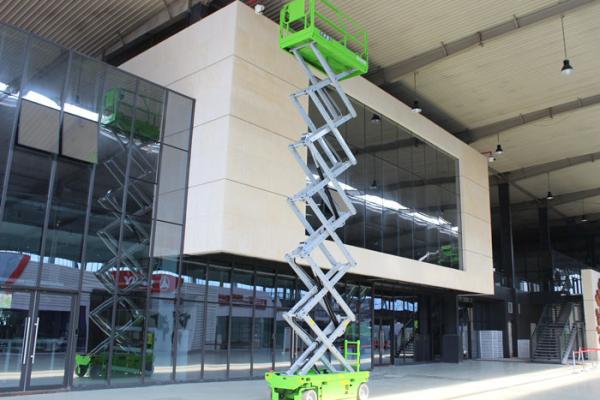

JESH HM scissor lift series adopts electric to drive the hydraulic motor,the working height covers 3m to 13.8m,the maximum load is 320kg,using the battery as the electric to drive the motor as the power,energy saving and enviromental protection,it is suitable for indoor flat ground and high altitude operation environment with high environmental requirements such as shoping malls,residential areas,factory or building maintenance and so on.

Chassis:

  • Unique design of bidirectional retracting scissor arm.

  • Slide out tray on left and right,easy for maintenance.

  • Forklift hole on the front for loading and discharging.

  • Unique pothole protection design.

  • Orbital plane,easy for cleaning.

  • Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Technical Parameters:

Model

SS1212HM

Dimentions

Metric

Working Height

10.1m

Platform Height

8.1m

Platform Length

2.27m

Platform Length-Extended

3.17m

Platform Extension

0.9m

Platform Width

1.14m

Height -Unfolded

2.35m

Height-folded

1.82m

Wheelbase

1.87m

Min. Ground Clearance-stowed

10cm

Min. Ground Clearance-Raised

2cm

Productivity

Platform capacity

320kg

Extension platform capacity

120kg

Drive Speed

3.5km/h

Gradeability

25%

Raise/Lower Speed

68/42sec

Turning Radius(Inside/outside)

0/2.1m

Tire

40.5x12.7cm

Power

Hydraulic Electric

Engine

Optional( Perkins,Koher,Deutz,Commins,Yanmar)

Hydraulic Oil Tank Capacity

25L

Machine Total Weight

2898KG

Bettery

24V/260Ah

Performance:

  • Proportional controls
  • Extended platform
  • Folding guardrails Platform
  • Self-lock gate on platform
  • Emergency lowering system
  • Hour meter
  • Safety brackets
  • Flashing beacon
  • Solid non-marking tires
  • All motion alarm
  • Emergency stop button
  • Automatic brakes system
  • Active pothole protection system
  • Tilt sensor with alarm
  • Charging protection system
  • Onboard diagnostic system

Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor

Packaging & Shipping

Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.

Shipping by sea with around 40-45 days arrrive your destination port.

Best Price Mobile 12m 320kg Capacity Manlift Platform Scissor Lift Electric For Indoor

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online.

Company Information

Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
