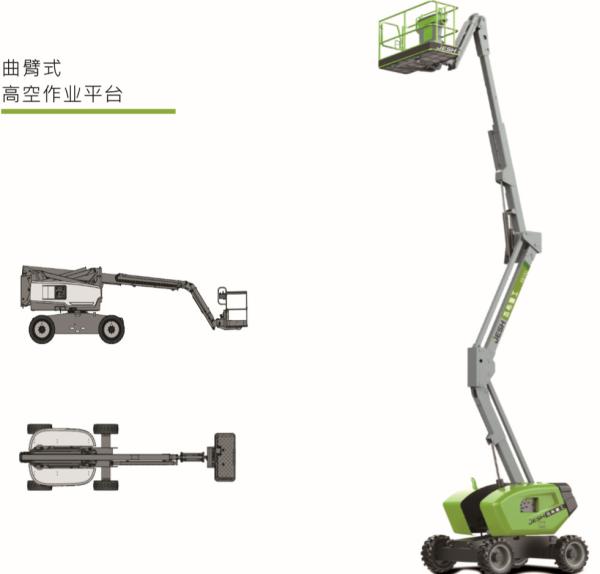

Self Propelled 14m Articulating Boom manlift outreach 7.1m for building
Self Propelled 14m Articulating Boom manlift outreach 7.1m for building
Self Propelled 14m Articulating Boom manlift outreach 7.1m for building
Self Propelled 14m Articulating Boom manlift outreach 7.1m for building
Specifications
Brand Name :
JESH
Model Number :
AB14J
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
US$42000-US$48000
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000 units per year
Delivery Time :
10-30days
Packaging Details :
packed as per internaitonal export standard.
Feature :
Self-propelled
Max.Working Height :
16m
Max.Platform Lifting Height :
14m
Platfrom Capacity :
230kg
Power :
Diesel engine
Application :
factory building, shipping building etc.
Color :
Light Green gray / as per your demand
material :
High impact steel structure
Lift Drive/Actuation :
Hydraulic
Engine :
Kohler
Description

Our engine powered articulated boom lifts give you the reach and power necessary for the best outdoor performance.The machine travels on rough ground smoothly with superb ground clearance and option of 2 or 4 wheels drive.It enables you to reach the working point precisely with industry- leading working height and superb capabilities.

JESH articulating boom lift provides working height from 14m-35m ,which is designed for outdoor use on rough ground.With superb “up and over” capabilities and excellent locating function, JESH articulating boom lift is suitable for working space which is hard to reach. It helps you to reach the working point freely, which improves working efficiency greatly.

Data sheet:

Model AB14J
Dimentions Metric
Max Working Height 15.9m
Max Platform Height 13.9m
Max Horizontal Outreach 8.6m
Extendable depth downward 1.0m
Platform Width 0.76m
Platform Length 1.80m
Height-Stowed 2.27m
Length-Stowed 6.5m
Length-Transportation 5.5m
Width 2.1m
Wheelbase 2.05m
Ground Clearance-Center 0.33m
Productivity
Load capacity(unrestricted) 230kg
Min. Turning Radius(inside/outside) 3.3m/4.4m
Turntable Swing 355°
Platform Rotation 160°
Jib Rotation 135°
Drive Speed(stowed) 5.4km/h
Drive Speed(extended) 1.1km/h
Control DC12V Proportional
Drive type 4 Wheels
Max. Gradeability 40%
Tire-solid foam filled( Dia.×Width) 835×290
Power 　
Engine D2011L03I
Fuel Diesel
Hydraulic Oil Tank Capacity 120L
Fuel Tank Capacity 70L

Self Propelled 14m Articulating Boom manlift outreach 7.1m for building

Our Services & Warranty

Warranty: 5 years for the main structural,2 years for the whole machine.

Engineers door to door service if with bulk orders, Also We can provide you online support.

Company Information

Our Products range include self-propelled scissor lift,self-propelled telescopic boom lift,self-propelled articulating boom lift, telehandler and other products which covers working height from 4M to 45M, now JESH AWPs are widely used in municipal plan and garden,energy and chemical industry,warehouse and logistics,construction and building maintenance,plant and stadium,airport and seaport in mainland of China, HK,Taiwan,Singapore,Malaysia,UAE and Saudi Arabia.​
