Specifications
Brand Name :
wolvestTeam
Model Number :
JM110845
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiated price
Payment Terms :
T/T
Supply Ability :
100pices/month
Delivery Time :
5 days
Packaging Details :
170*105*30mm Box
Application area :
House, office, Basements,Factory ,ect
Coverage area :
100Sqm
Feature :
High gain, easy installation and operation.
I/O impedence :
50Ω/N connector
Advantage :
CE and RoHs Approved
Dependability stand by :
GB6993-86 standard
Description

Product Description

This Cell Phone Signal Booster for GSM/DCS Dual Band (900MHz/1800MHz) can be applied into different places for improving the quality of your phone calling. It can be used in following small regions signal blind or weak signal area, such as underground or semi-underground place of business, basements, underground parking, etc.

Also this booster is popular with small-scale hot-spot signal Complaints areas, such as conference rooms ,a small supermarket, small shopping malls ,the office and small public areas ,etc. Traffic and large social influence areas ,such as bars ,cafes ,dance halls ,cafes ,fitness clubs and leisure etc. Some other occasions you can also see it. Elevator, lift wells in particular, home, office, luxury yachts, private cars, public security system and road safety management, etc.

From above you can know its power, so what are you hesitating about? Go directly and buy one for you necessary usage.

This Cell Phone Signal Booster for GSM/DCS Dual Band Specification:

  • Frequency range:

-Uplink GSM890-915MHz, DCS1710-1785MHz
-Downlink GSM935-960MHz, DCS 1805-1880MHz
  • Gain
-Up link: Gp≥65dB,Downlink: Gp≥70dB
-Up link: Gp≥60dB,Downlink: Gp≥67dB
  • Output up:

-GSM Up link: 15dBm,DCS Up link: 13dBm
-GSM Downlink: 20dBm, DCS Downlink: 18dBm
  • Function:

-Power supply LED denote

-Export power LED denote

  • Port VSWR:≤1.8DB
  • I/O impedence: 50Ω/N connector
  • ALC:≥20dB
  • In-Band ripple:≤6dB
  • Noise figure:≤6dB
  • Transmission delay:≤0.5μs
  • Gross Weight: 760G
  • Power supply: AC: 110-240V DC: 5V
  • Size: 170*105*30mm
  • Coverage area: 60Sqm

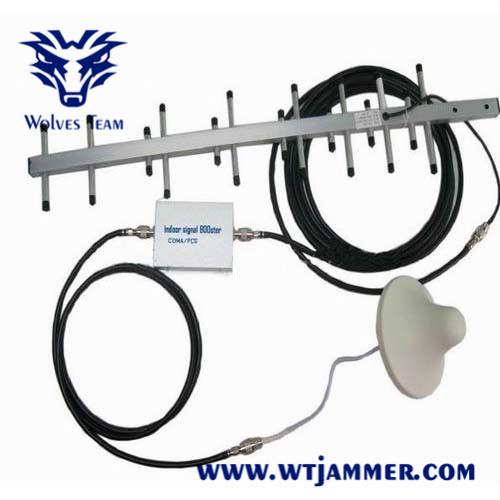

Accessories:

  • Cell Phone Signal Booster
  • Indoor Antenna

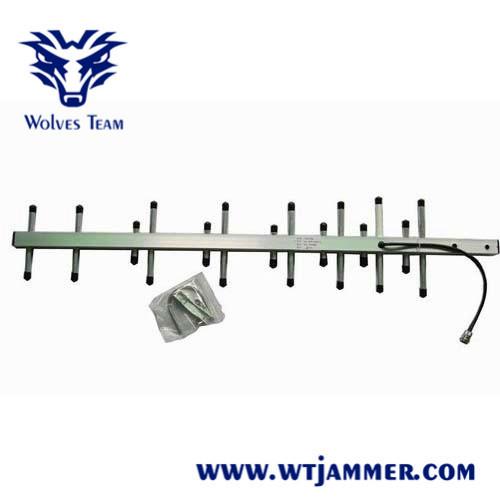

  • Outdoor Antenna
  • Power Adapter
  • Coaxial Cable 5M
  • Coaxial Cable 10M
  • Indoor Antenna Accessories and Screws
  • User Manual
