GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845
Specifications
Brand Name :
wolvestTeam
Model Number :
JM110845
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiated price
Payment Terms :
T/T
Supply Ability :
100pices/month
Delivery Time :
5 days
Packaging Details :
160 x 121 x 22 mm (L x W x D) Box
Application area :
House, office, Basements,Factory ,ect
Coverage area :
800Sqm
Feature :
High gain, easy installation and operation.
I/O impedence :
50Ω/N connector
Advantage :
CE and RoHs Approved
Dependability stand by :
GB6993-86 standard
Description

Product Description

At a Glance...

  • Instantly boost your cell phone signals!
  • Dual band GSM (850MHz/1900MHz) for worldwide use
  • Up to 800 square meter working range
  • Comes ready to go - no need for anything extra!
  • Powerful solution at an affordable price

Specifications

  • Frequency range:
-Up link GSM 824-849/PCS1850-1910(MHz)
-Downlink GSM 869-894/PCS1930-1990(MHz)

  • Coverage: 500-800m2 (Distance will be reduced when obstacles are in the way i.e. surrounding walls)
  • Gain (dB):

-GSM/PCS Up link 50/45
-GSM/PCS Downlink 50/45
  • Output Power (dBm) ≥17dB
  • Pass Band Ripple:

GSM 10dB

PCS: 15dB

  • Guard Band Rejection:

-GSM (BW-60dB) <=42 MHz (BW-70dB) <=42 MHz
-PCS (BW-60dB) <=104MHz (BW-70dB) <=104MHz
-I/O Return Loss <= -10dB
-Noise Figure: <= -8dB
  • Intermodulation Attenuation (PO = 13dBm) >= 40dBc
  • Transmission Delay: <= 0.5 us
  • Ambient Temperature: -10 degree – 50 degree C
  • Power supply: AC110220V 4555Hz
  • Dimensions: Signal Booster: 160 x 121 x 22 mm (L x W x D)

Certification: CE, FCC, RoHS

Product Notes

  • Long range cell phone signal booster! Up to 800 square meters!
  • This device is for GSM 850and 1900 MHz signals only. Please check frequency your country uses before purchasing

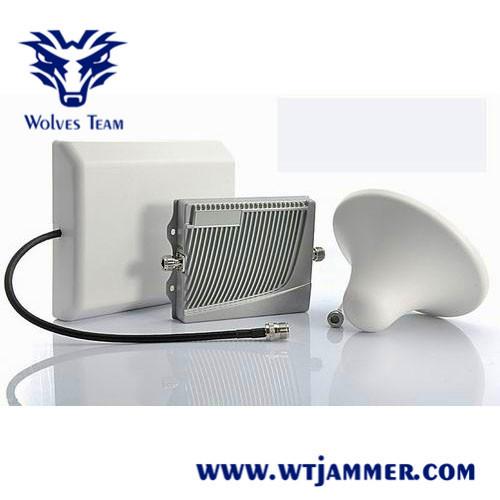

Accessories :

  • Cell Phone Signal Booster
  • Indoor Antenna
  • Outdoor Antenna
  • Power Adapter
  • Coaxial Cable 2M
  • Coaxial Cable 10M
  • Indoor Antenna Accessories and Screws
  • User Manual
