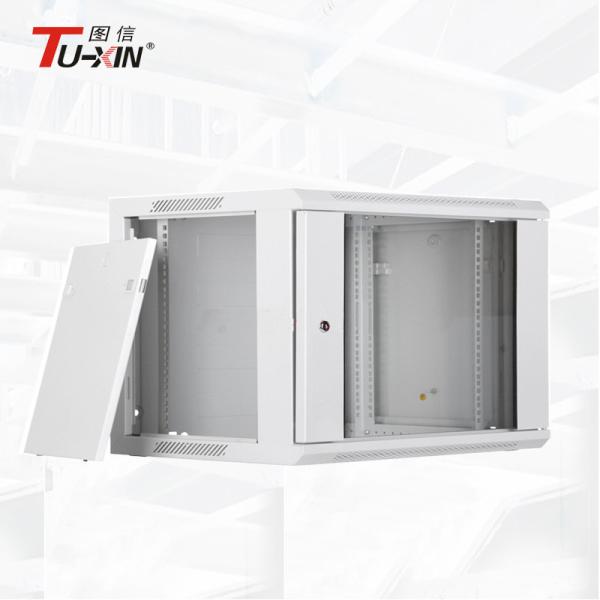

Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Indoor 6U Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof
Specifications
Brand Name :
TUXIN
Model Number :
TX-WF*6606
Certification :
CE&RoHS
Place of Origin :
Zhejiang,CHINA
MOQ :
10pc
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
15-20 work days
Packaging Details :
accembled packing
Cabinet Standard :
International Standard
Material :
SPCC Cold Rolled Steel
Product Name :
6U Wall mount cabinet
Customization :
Accept Enclosure Customized
Thickness :
Mounting Angle : 1.5mm
Type :
Wall mount network cabinet
Standard :
International
Warranty :
1 year
Description

Wall mount network cabinet 6U double section 600 x 600mm wall mount rack

Features:

  1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

  1. Advanced technology, precise size.
  2. Reliable structure, static loading capacity:60KG.
  3. Quick and easy wall mounted, 19’’ standard installation inside.
  4. Can be flated pack, save transportation inside.
  5. 120mm size fan could be installed at top of cabinet.
  6. Cable entry from top and bottom.
  7. IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Brand: TUXIN Column spacing: 465mm (19 inch)
No: TX-WF-6406 Material: SPCC cold rolled steel
Size: 600mm*450mm*6U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 10 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491；PARTI,DIN41494；PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Order Codes Capacity W*D*H(mm)
TX-WF-6404 4 600*450*220
TX-WF-6606 6 600*600*358
TX-WF-6409 9 600*450*492
TX-WF-6612 12 600*600*625
TX-WF-6415 15 600*450*730
TX-WF-6418 18 600*450*820
TX-WF-6422 22 600*450*960
TX-WF-6427 27 600*450*1280

Welded frame, stable structure with precise craftsmanship;

Single section, compatiblewith 19"standard equipment;

Tempered glass front door with over 180 turning degree;

Removable side panel, easy to install and maintain (lock optional);

Cable entry on the top cover and bottom panel with knock-out plate;

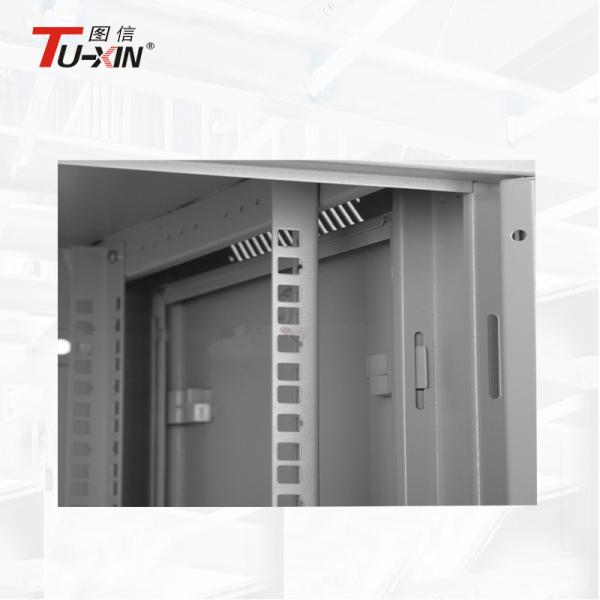

L-shaped mounting profile, easy to adjustable on the mounting rail;

Fan cutout on the top cover ,easy to install fan;

Swing back with over 90 turning degree;

Various accessories for optional;

Staff Technology:

The staff has trained strict pre-job training. Our staff has enough production process knowledge, strong sense of quality and self-checking awareness. "Quality is not defective, customer zero complaints" is our goal. We provide customers with satisfactory products and services according to international standards. All of these guarantee the high quality of our products.
