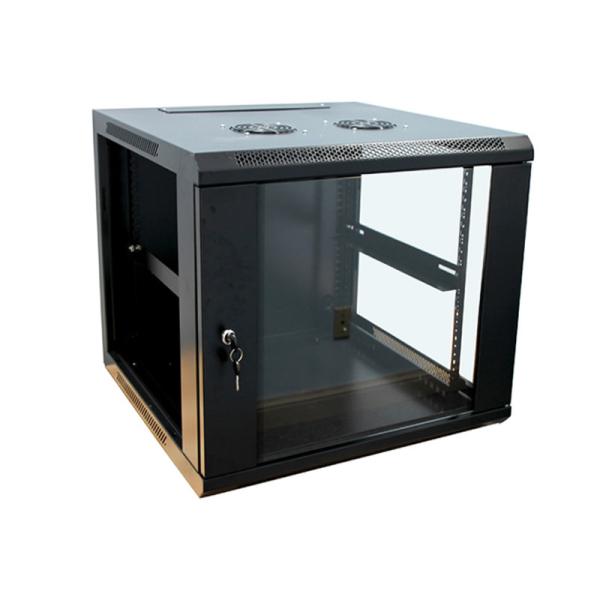

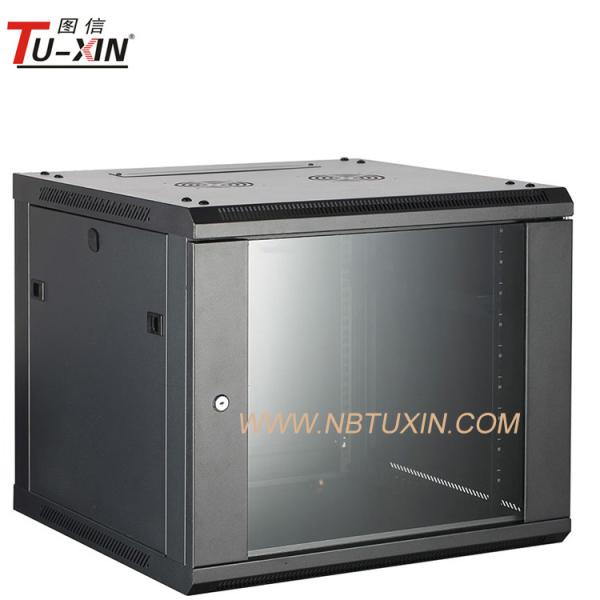

19 Inch telecommunications wall mounted single section 4u,6u 9u Network Cabinet with lock

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

1. Advanced technology, precise size.
2. Reliable structure, static loading capacity:60KG.
3. Quick and easy wall mounted, 19’’ standard installation inside.
4. Can be flated pack, save transportation inside.
5. 120mm size fan could be installed at top of cabinet.
6. Cable entry from top and bottom.
7. IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Pictures:

Cabinet technical requirements

1 should have good technical performance. The structure of the cabinet shall be based on the electrical and mechanical properties of the equipment and the requirements of the use environment, and the necessary physical design and chemical design shall be carried out to ensure that the structure of the cabinet has good rigidity and strength, as well as good electromagnetic isolation, grounding, noise isolation, ventilation and heat dissipation. And other properties. In addition, the cabinet should be resistant to vibration, impact, corrosion, dust, water, radiation, etc., in order to ensure stable and reliable equipment.

2 It should have good usability and safety protection facilities to facilitate operation, installation and maintenance, and ensure operator safety.

3 should be easy to produce, assembly, commissioning and packaging and transportation.

4should meet the requirements of standardization, normalization and serialization. 5 beautiful appearance, application, color coordination.

Brand Concept

Create a classic project to highlight the noble quality

Technical Parameters:

Materials:

Look at the steel plate, the steel plate must be thick, shop around, you can feel what thick and thin with your fingers. In addition, the brackets inside the cabinet should be large. In general, the stability and load-bearing properties of the nine-fold profiles are very good. The iron tee welded brackets do well in the stability.
