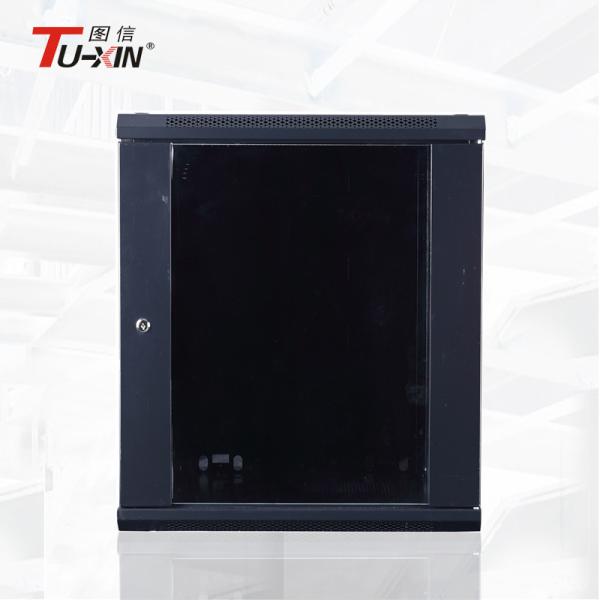

Cold Rolled Steel Wall Mount Enclosure Cabinet , Commercial Network Switch Cabinet
Cold Rolled Steel Wall Mount Enclosure Cabinet , Commercial Network Switch Cabinet
Cold Rolled Steel Wall Mount Enclosure Cabinet , Commercial Network Switch Cabinet
Cold Rolled Steel Wall Mount Enclosure Cabinet , Commercial Network Switch Cabinet
Cold Rolled Steel Wall Mount Enclosure Cabinet , Commercial Network Switch Cabinet
Cold Rolled Steel Wall Mount Enclosure Cabinet , Commercial Network Switch Cabinet
Specifications
Brand Name :
TUXIN
Model Number :
TX-WF*6415
Certification :
ISO 9001:2008/CE/ROHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs
Delivery Time :
15-20 work days
Packaging Details :
Assembied packing
Color :
RAL9004 , RAL9005 , RAL7035 , RAL7044
Size :
19 Inch 600mm*450mm*15U
Thickness :
Mounting Angle : 1.5mm
Type :
Wall mount data rack
Standard :
International
Warranty :
1 year
Front door :
Toughened Glass Front Door, Mesh door
Loading capacity :
60kg (on the adjustable feet)
Description

19 Inch 15u SPCC Cold Rolled Steel wall data rack with ventilation hole

Features:

  1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

  1. Advanced technology, precise size.
  2. Reliable structure, static loading capacity:60KG.
  3. Quick and easy wall mounted, 19’’ standard installation inside.
  4. Can be flated pack, save transportation inside.
  5. 120mm size fan could be installed at top of cabinet.
  6. Cable entry from top and bottom.
  7. IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Brand: TUXIN Column spacing: 465mm (19 inch)
No: TX-WF-6415 Material: SPCC cold rolled steel
Size: 600mm*450mm*15U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 10 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491；PARTI,DIN41494；PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Order Codes Capacity W*D*H(mm)
TX-WF-6404 4 600*450*220
TX-WF-6606 6 600*600*358
TX-WF-6409 9 600*450*492
TX-WF-6612 12 600*600*625
TX-WF-6415 15 600*450*730
TX-WF-6418 18 600*450*820
TX-WF-6422 22 600*450*960
TX-WF-6427 27 600*450*1280
