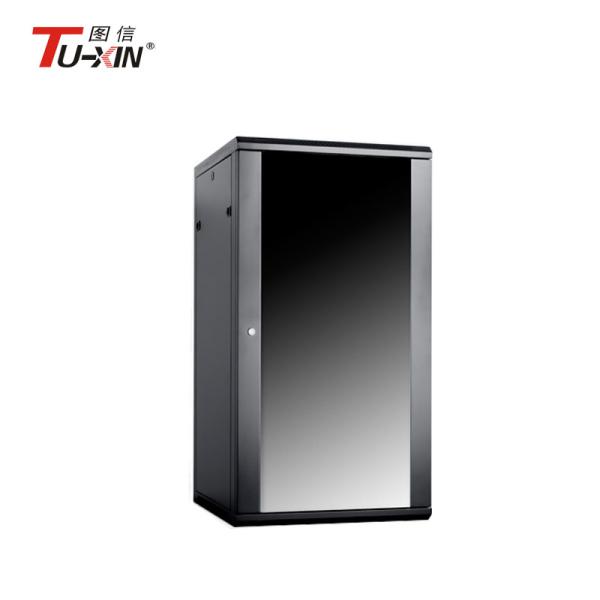

Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet
Specifications
Brand Name :
TUXIN
Model Number :
TX-WF*6615
Certification :
ISO 9001:2008/CE/ROHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
15-20 work days
Packaging Details :
Assembied packing
Product Name :
15U Wall mount cabinet
Customization :
Accept Enclosure Customized
Thickness :
Mounting Angle : 1.5mm
Type :
Wall mount data rack
Standard :
International
Warranty :
1 year
Front door :
Toughened Glass Front Door, Mesh door
Loading capacity :
60kg (on the adjustable feet)
Description

enclosure network 15u wall mount data rack height Telecom Indoor Cabinet

Specifications:

1. Capacity:15U

2. Width*Depth:600*600mm

3. Certificate:ROHS CE ISO9001:2008

4. 4U, 6U, 9U, 12U, 15U, 18Uare all available

Features:

  1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

  1. Advanced technology, precise size.
  2. Reliable structure, static loading capacity:60KG.
  3. Quick and easy wall mounted, 19’’ standard installation inside.
  4. Can be flated pack, save transportation inside.
  5. 120mm size fan could be installed at top of cabinet.
  6. Cable entry from top and bottom.
  7. IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Telecom Indoor Wall Mount Server Cabinet , Half Height Network Rack Cabinet

Brand: TUXIN Column spacing: 465mm (19 inch)
No: TX-WF-6615 Material: SPCC cold rolled steel
Size: 600mm*600mm*15U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 10 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491；PARTI,DIN41494；PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Order Codes Capacity W*D*H(mm)
TX-WF-6404 4 600*450*220
TX-WF-6606 6 600*600*358
TX-WF-6409 9 600*450*492
TX-WF-6612 12 600*600*625
TX-WF-6415 15 600*450*730
TX-WF-6418 18 600*450*820
TX-WF-6422 22 600*450*960
TX-WF-6427 27 600*450*1280

1.Q:Are you a factory or trading company?
A:We are a Factory, Distributor and Trading Company.
2.Q:Where is your factory located? How can I visit there?
A:Our factory and office is located in Ningbo, China.
You can fly to Ningbo or Shanghai airport,Warmly welcome to visit us!
3.Q:Can you do OEM?
A:Sure,we can do OEM products.
4.Q:How can I get some samples?
A:We are honored to offer you samples.
5.Q:How does your factory promise quality control?
A:Quality is priority.We always attach great importance to quality
controlling.Our factory has gained CE,ROHS,EMC authentication.
