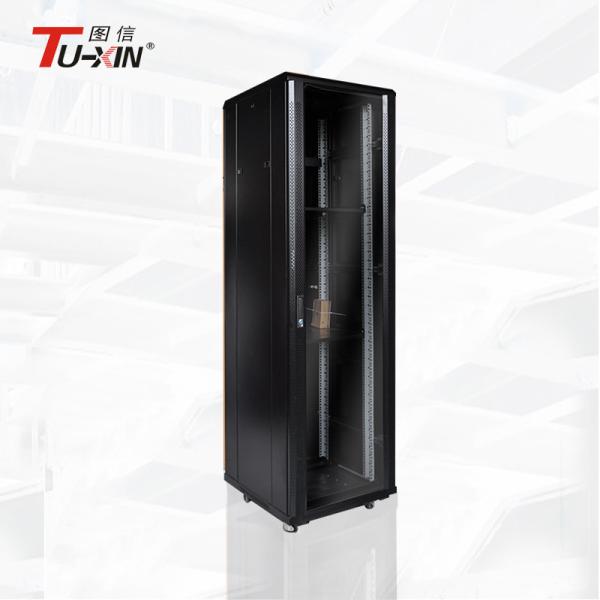

Dustproof Locking Network Cabinet High Capacity 800 Kg Loading International Standard
Dustproof Locking Network Cabinet High Capacity 800 Kg Loading International Standard
Specifications
Brand Name :
TUXIN
Model Number :
TX-PB*6042
Certification :
CE , ROHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Packaging Details :
15-20 work days
Cabinet Standard :
International Standard
Material :
SPCC Cold Rolled Steel
Function :
Dustproof
Thickness :
Mounting Angle : 1.5mm
Type :
19" Standard Server Cabinet
Feature :
Floor Standing Rack Cabinet
Static loading :
800 Kg
Description

Locking Network Cabinet 42 u it server cabinet server rack

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

2. Reliable structure, static loading capacity:500kg

3. Adjustable feet and castors are available, moving conveniently, and fixing reliablily.

4. Baying together easy, quickly efficiently and firmly.

5. International popular tempered glass front door, steel rear door.

6. Optional cable entry on top cover and bottom panel, removable front&rear door and side panel facility, ventilation and rat-proof on the bottom.

7. Varies optional accessories, reliable quality.

8. Optional opening hole and varies specification upon customers’ special requirements.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:2.0mm

Others:1.2mm

Color:

RAL9

004(black)

RAL7044(gray)

Dustproof Locking Network Cabinet High Capacity 800 Kg Loading International Standard

Brand: TUXIN Column spacing: 465mm (19 inch)
No: TX-PB-6042 Material: SPCC cold rolled steel
Size: 600mm*1000mm*42U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 2.0mm,others: 1.2-1.5mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 20 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PARTI,DIN41494;PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Order Codes Capacity W*D*H(mm)
TX-PB*6615 15U 600*600*800
TX-PB*6620 20U 600*600*1000
TX-PB*6624 24U 600*600*1200
TX-PB*6627 27U 600*600*1400
TX-PB*6632 32U 600*600*1600
TX-PB*6637 37U 600*600*1800
TX-PB*6642 42U 600*600*2000
TX-PB*6647 47U 600*600*2200
TX-PB*6824 24U 600*800*1200
TX-PB*6832 32U 600*800*1600
TX-PB*6837 37U 600*800*1800
TX-PB*6842 42U 600*800*2000
TX-PB*6924 24U 600*900*1200
TX-PB*6932 32U 600*900*1600
TX-PB*6937 37U 600*900*1800
TX-PB*6942 42U 600*900*2000
TX-PB*6024 24U 600*1000*1200
TX-PB*6032 32U 600*1000*1600
TX-PB*6037 37U 600*1000*1800
TX-PB*6042 42U 600*1000*2000
TX-PB*8642 42U 800*600*2000
TX-PB*8842 42U 800*800*2000
TX-PB*8042 42U 800*1000*2000

the layout of the architecture

In general, there are many baffles, and there are cooling holes. Some iron sheets used to fix the cables must be wrapped to prevent damage to the cables.

Products Status : Stock

Material : C.R.S.

package : Server Rack

structure : rigid and standing

cable : easy for assembly Network cabinet

finish : powder coating, painting, etc

Protection Level : IP20 Network cabinet

IP20 : Server Rack

Color : blak, grey, etc

advantages : 6years' experiences in Network cabine

certification : ISO9001:2008
