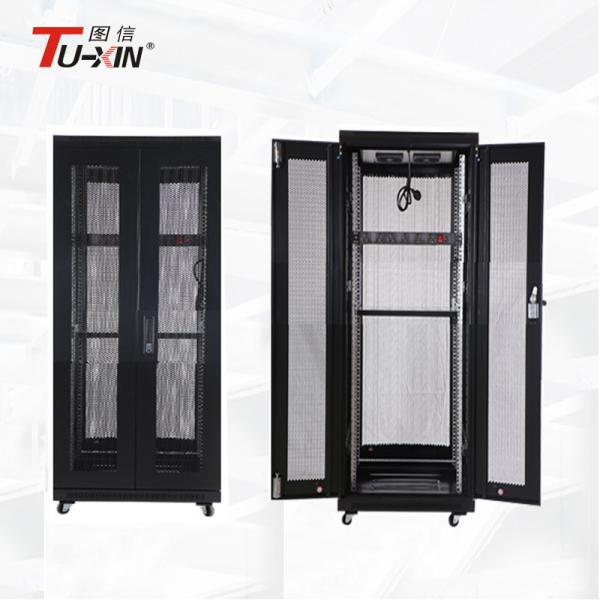

Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading
Specifications
Brand Name :
TUXIN
Model Number :
TX-PB*6627
Certification :
CE , ROHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
15-20 work days
Packaging Details :
Assembied packing / Flat packing
Degree of protection :
IP20
Application :
Data Center Server Rack
Function :
Dustproof
Thickness :
Mounting Angle : 1.5mm
Type :
19" Standard Server Cabinet
Moving loading :
500 Kg
Statu :
Stock
Description

server rack on wheels 19 Inch 27u server rack Locking Network Cabinet

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

2. Reliable structure, static loading capacity:500kg

3. Adjustable feet and castors are available, moving conveniently, and fixing reliablily.

4. Baying together easy, quickly efficiently and firmly.

5. International popular tempered glass front door, steel rear door.

6. Optional cable entry on top cover and bottom panel, removable front&rear door and side panel facility, ventilation and rat-proof on the bottom.

7. Varies optional accessories, reliable quality.

8. Optional opening hole and varies specification upon customers’ special requirements.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:2.0mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Waterproof Computer Rack Cabinet , High Capacity Enclosed Server Rack 500 Kg Loading

Brand: TUXIN Column spacing: 465mm (19 inch)
No: TX-PB-6627 Material: SPCC cold rolled steel
Size: 600mm*600mm*27U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 2.0mm,others: 1.2-1.5mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 20 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PARTI,DIN41494;PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Order Codes Capacity W*D*H(mm)
TX-PB*6615 15U 600*600*800
TX-PB*6620 20U 600*600*1000
TX-PB*6624 24U 600*600*1200
TX-PB*6627 27U 600*600*1400
TX-PB*6632 32U 600*600*1600
TX-PB*6637 37U 600*600*1800
TX-PB*6642 42U 600*600*2000
TX-PB*6647 47U 600*600*2200
TX-PB*6824 24U 600*800*1200
TX-PB*6832 32U 600*800*1600
TX-PB*6837 37U 600*800*1800
TX-PB*6842 42U 600*800*2000
TX-PB*6924 24U 600*900*1200
TX-PB*6932 32U 600*900*1600
TX-PB*6937 37U 600*900*1800
TX-PB*6942 42U 600*900*2000
TX-PB*6024 24U 600*1000*1200
TX-PB*6032 32U 600*1000*1600
TX-PB*6037 37U 600*1000*1800
TX-PB*6042 42U 600*1000*2000
TX-PB*8642 42U 800*600*2000
TX-PB*8842 42U 800*800*2000
TX-PB*8042 42U 800*1000*2000

Installation matters

Check the door opening angle when opening and closing the cabinet. The standard cabinet door is open on the right and the door axis is on the left, of course not excluding the reverse. All doors and side panels should be easy to open for maintenance.

Finish the line:

Group network cables. The number of groups is usually less than or equal to the number of cable management shelves behind the cabinet. Bundle the power cords of all the devices, insert the plugs from the rear through holes, and look for the respective devices through a separate cable management arm.
