19 rack Locking Network Cabinet 32u secure server rack

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

2. Reliable structure, static loading capacity:500kg

3. Adjustable feet and castors are available, moving conveniently, and fixing reliablily.

4. Baying together easy, quickly efficiently and firmly.

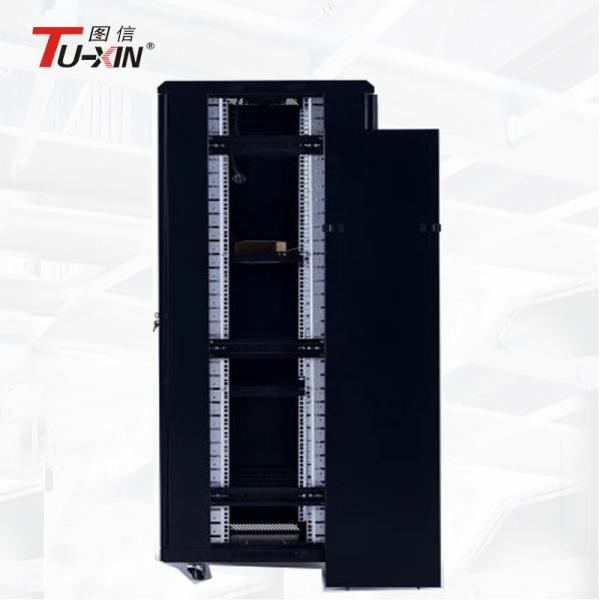

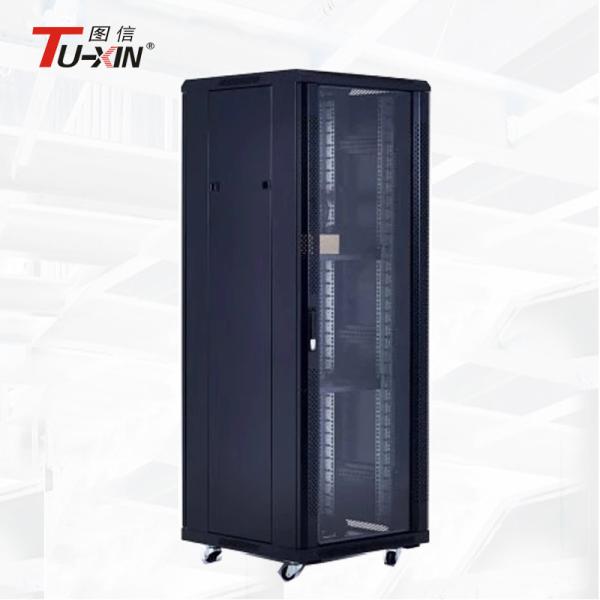

5. International popular tempered glass front door, steel rear door.

6. Optional cable entry on top cover and bottom panel, removable front&rear door and side panel facility, ventilation and rat-proof on the bottom.

7. Varies optional accessories, reliable quality.

8. Optional opening hole and varies specification upon customers’ special requirements.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:2.0mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Cabinet finishing

Preparatory preparation

First, the user should be notified to organize the cabinet without affecting the normal work of the user.

Then according to the topological structure of the network, the existing equipment, the number of users, the user grouping and other factors to outline the internal wiring diagram and equipment location map.

Next, prepare the necessary materials: network jumpers, label sheets, and various types of plastic ties (legged dogs).

Organize the cabinet

Install the cabinet:

Need to do the following three things by yourself: First, use the screw and nut of the random frame to tighten the holder; second, turn the cabinet upside down and attach the movable wheel; third, according to the position of the equipment Holders adjust and add baffles.

UMC test:

When it is confirmed to be correct, turn on the power supply and perform the network interconnection test to ensure the normal operation of the user. This is the most important.
