27u rack mounted equipment rack server Locking Network Cabinet

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

2. Reliable structure, static loading capacity:500kg

3. Adjustable feet and castors are available, moving conveniently, and fixing reliablily.

4. Baying together easy, quickly efficiently and firmly.

5. International popular tempered glass front door, steel rear door.

6. Optional cable entry on top cover and bottom panel, removable front&rear door and side panel facility, ventilation and rat-proof on the bottom.

7. Varies optional accessories, reliable quality.

8. Optional opening hole and varies specification upon customers’ special requirements.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:2.0mm

Others:1.2mm

Color:

RAL9

004(black)

RAL7044(gray)

Fixed equipment:

Adjust the baffle in the cabinet to a suitable position so that the administrator can see the operation of all devices without opening the cabinet door, and add the baffle appropriately according to the number and size of the devices. Take care to leave some space between the baffles. Place all the switching equipment and routing devices used in the cabinet in the pre-drawn drawings.

Cabinets can be divided into two basic structures: profile and sheet, depending on the weight of the components, materials, and manufacturing processes.

1 Profiles Cabinet: There are two kinds of steel profiles and aluminum profiles. Steel shaped steel cabinets are made up of special-shaped seamless steel tubes. This cabinet is very good in rigidity and strength and is suitable for heavy equipment. Aluminum profiles made of aluminum alloy profiles have a certain degree of rigidity and strength and are suitable for general or light equipment. This cabinet is light in weight, less in processing volume, and beautiful in appearance and widely used.

2 Thin-plate structure cabinets: The entire panel cabinet, whose side plates are formed by bending a whole steel plate. This type of cabinet has good rigidity and strength and is suitable for heavy or general equipment. However, due to the non-removable side panels, assembly and maintenance are inconvenient. The structure of the curved column column cabinet is similar to that of the profile cabinet, and the column is formed by bending the steel plate. This cabinet has a certain degree of rigidity and strength and is suitable for general equipment.

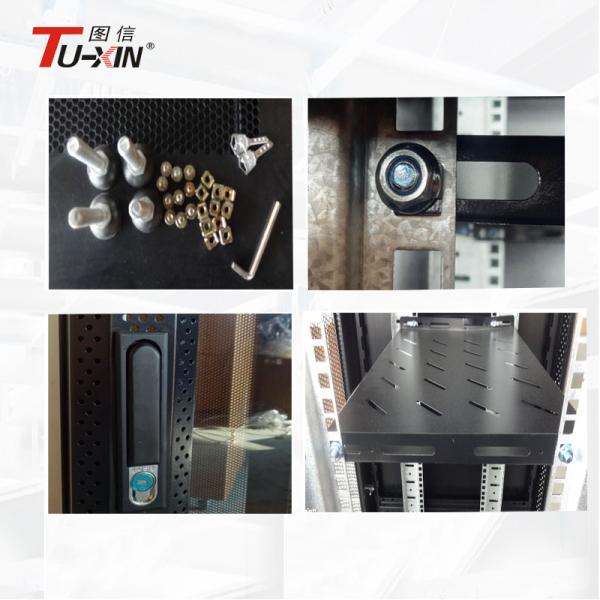

According to need, the cabinet is also equipped with cabinet accessories. Its main accessories are fixed or retractable rails, locking devices, hinges, cable troughs, cabling racks, and shield comb reeds, etc.
