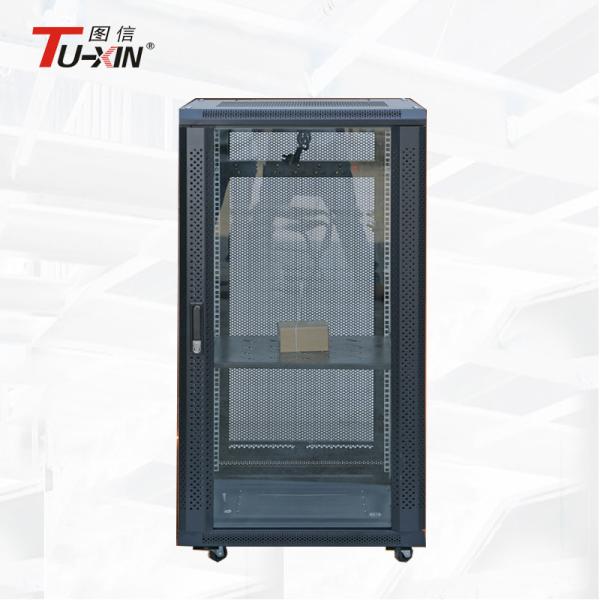

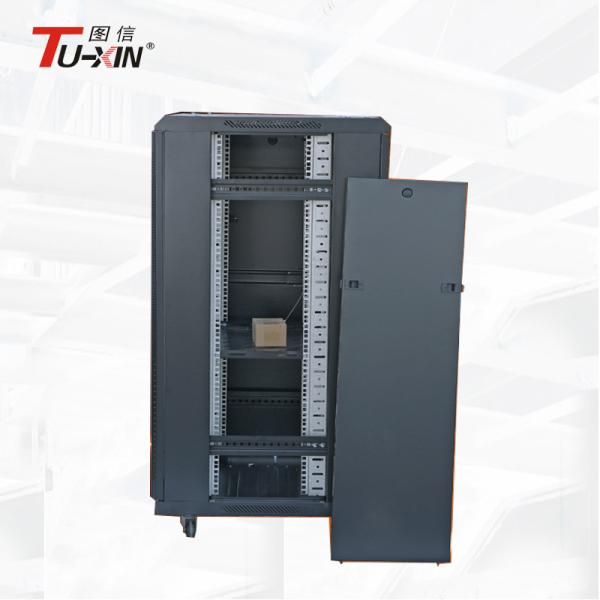

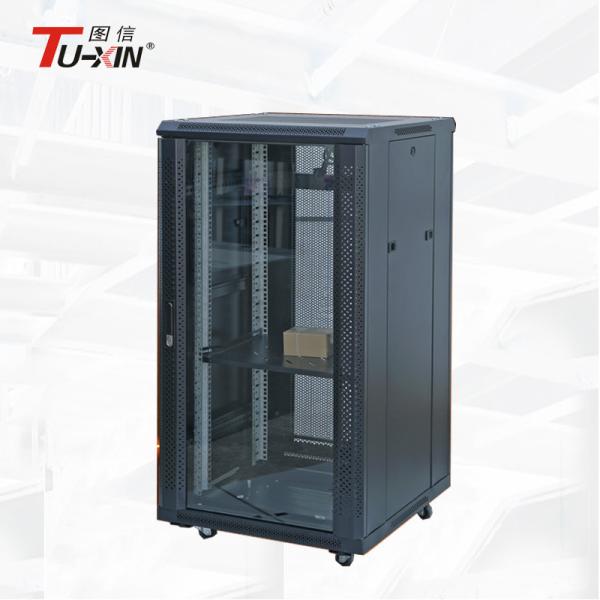

19 inch server enclosure cabinet locking network cabinet server cabinet price

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

2. Reliable structure, static loading capacity:500kg

3. Adjustable feet and castors are available, moving conveniently, and fixing reliablily.

4. Baying together easy, quickly efficiently and firmly.

5. International popular tempered glass front door, steel rear door.

6. Optional cable entry on top cover and bottom panel, removable front&rear door and side panel facility, ventilation and rat-proof on the bottom.

7. Varies optional accessories, reliable quality.

8. Optional opening hole and varies specification upon customers’ special requirements.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:2.0mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Quality requirements

Network cabinets should have good technical performance. The structure of the cabinet should be based on the electrical and mechanical properties of the equipment and the requirements of the use of the environment, the necessary physical design and chemical design, to ensure that the cabinet structure has good stiffness and strength and good electromagnetic isolation, grounding, noise isolation, ventilation and heat dissipation And other properties. In addition, the network cabinet shall have anti-vibration, anti-impact, anti-corrosion, dust-proof, waterproof, radiation-proof properties to ensure the stable and reliable operation of the equipment. The network cabinet should have good usability and safety protection facilities, be easy to operate, install and maintain, and can guarantee operator safety. The network cabinet should be easy to produce, assemble, debug and package and transport. Network cabinets should meet the requirements of standardization, normalization, and serialization. The cabinet is beautiful in appearance, applicable, and coordinated in color.

Installation matters

Check the door opening angle when opening and closing the cabinet. The standard cabinet door is open on the right and the door axis is on the left, of course not excluding the reverse. All doors and side panels should be easy to open for maintenance.
