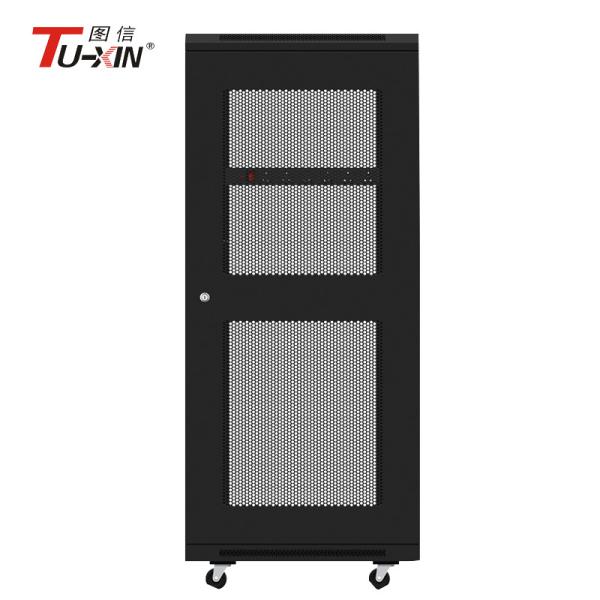

19 Inch 27u computer server rack enclosure cabinet SPCC Cold Rolled Steel with Mesh door on wheels

· Reliable 19" international structure, universal type
· Front 5mm tempered glass door with handle lock
· Steel panel back door.
· Front & rear door hinges with 130 degrees operation angle
· Swiveling wheels and adjustable feet can be jointly
· Removable side panels with plastic fasteners for easy operation, lock is for options
· Top with 2/4 fans for airflow & cooling, fan size: 120*120*38mm
· Top wiring entrances: 1xcable entrance with cover panel
· Bottom wiring entrances: 4xcable entrance with cover panels
· Easy to disassemble front/rear/left/right doors enable convenient operation from any side of the rack
· Operation installation of base enables the rack to stay in a fixed position with meeting requirements of data center
· Linkage rack, full series of operational accessories, sensitive thermostat panel optional
· Varies specification upon customers' special requirements
· Width: 600, 800mm
· Depth: 600, 800, 1000, 1200mm
· Height: 18U, 22U, 27U, 32U, 37U, 42U, 47U
· Flat packing methods allows for convenient stocking and end-user delivery, save 60% volume
· comply with ANSI/EIA, RS-310-D, IEC2972, DIN41491: Part1, DIN41494: PART7, GB/T3047.292 standard and ETSI standard
Surface finish: Degreasing, pickling, phosphating, powder coating.
· Material: SPCC cold rolled steel
· Mounting profile: 2.0mm, others: 1.20mm to 1.50mm
· Cabinet bearing capacity: 800kg
· IP degrees: IP20
· Body color: RAL9004(black), RAL7035(grey) and others


We have 6 years experience of production in network rack.
1. About shipping: ningbo or shanghai, Send to your warehouse or your other supplier in China.
2. About Payment: T/T, Western Union; LC; Paypal, 30% deposit 70% before shippment.
3. About QC: Strict quality control system
4. About delivery time: 10-15 days

Plate type, coating material, and processing technology determine the stability of the cabinet. Its length specifications are generally 600,800mm, width specifications are 600, 800, 1000mm, height specifications are 42U, 36U, 24U. Most of the cabinets used in the early days were made of castings or angle steels that were connected or welded into cabinet frames by screws or rivets, and then added with cover plates (doors) made of sheet steel. The cabinets are bulky, heavy and unsophisticated and have been eliminated. With the use of transistors and integrated circuits, and the miniaturization of various components and components, the structure of cabinets has also grown toward miniaturization and building blocks. The cabinet has evolved from the previous full-panel structure into a plug-in and plug-in structure with a certain size series. The assembly arrangement of the subracks and plug-ins is arranged horizontally and vertically. Cabinet materials generally use thin steel plates, steel profiles of various cross-sectional shapes, aluminum profiles and various engineering plastics. In addition to welding and screw connections, the frame of the cabinet is also bonded.
