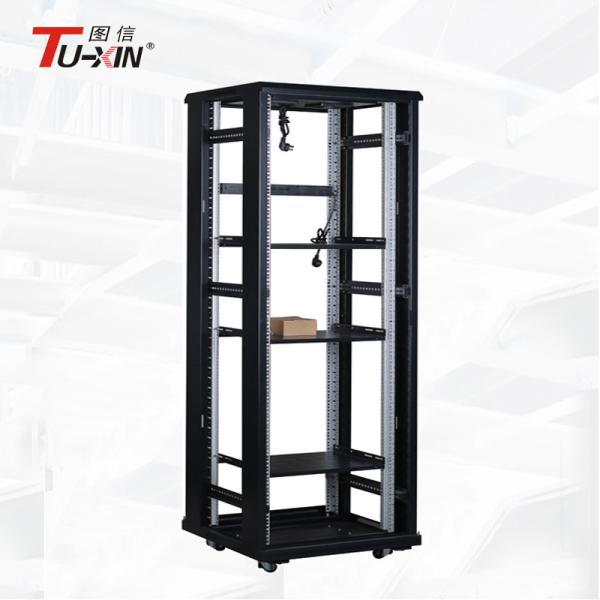

19 inch 32U 800mm * 800mm computer server rack with Toughened Glass Front Door on wheels

Features:

1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;compatible with 19’’ international standard, metric system and EISI standard.

2. The overall use of the frame structure,easy to install.

3. Front door with perforated,back door steel plate.

4. Using the upper and lower line way,can be closed up

and down the alignment channel.large hole size in

bottom can be adjusted.

5. Can easily remove the left and right side doors and front/rear doors.

6. Install high-speed silent cooling fan at the top of the cabinet.

7. The bottom of the installation of the steeling wheel to facilitate the movement, through the foot so that the overall balance.

8. Front door with elastic lock,solid and cabinet connection.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:2.0mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Cabinets can be divided into two basic structures: profile and sheet, depending on the weight of the components, materials, and manufacturing processes.

1 Profiles Cabinet: There are two kinds of steel profiles and aluminum profiles. Steel shaped steel cabinets are made up of special-shaped seamless steel tubes. This cabinet is very good in rigidity and strength and is suitable for heavy equipment. Aluminum profiles made of aluminum alloy profiles have a certain degree of rigidity and strength and are suitable for general or light equipment. This cabinet is light in weight, less in processing volume, and beautiful in appearance and widely used.

2 Thin-plate structure cabinets: The entire panel cabinet, whose side plates are formed by bending a whole steel plate. This type of cabinet has good rigidity and strength and is suitable for heavy or general equipment. However, due to the non-removable side panels, assembly and maintenance are inconvenient. The structure of the curved column column cabinet is similar to that of the profile cabinet, and the column is formed by bending the steel plate. This cabinet has a certain degree of rigidity and strength and is suitable for general equipment.

According to need, the cabinet is also equipped with cabinet accessories. Its main accessories are fixed or retractable rails, locking devices, hinges, cable troughs, cabling racks, and shield comb reeds, etc.

We have 6 years experience of production in network rack.
1. About shipping: ningbo or shanghai, Send to your warehouse or your other supplier in China.
2. About Payment: T/T, Western Union; LC; Paypal, 30% deposit 70% before shippment.
3. About QC: Strict quality control system
4. About delivery time: 10-15 days
