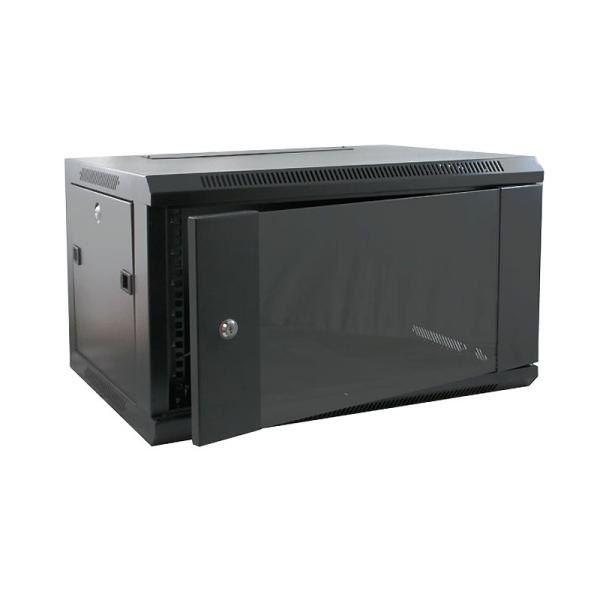

Stable Structure Wall Mount Server Rack Cabinet Static Loading Capacity 60kg
Stable Structure Wall Mount Server Rack Cabinet Static Loading Capacity 60kg
Specifications
Brand Name :
TUXIN
Model Number :
WS1-6406
Certification :
ISO 9001:2008/CE/ROHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10/PCS
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
15-20 work days
Packaging Details :
Assembied packing
Cabinet Standard :
International Standard
Material :
SPCC Cold Rolled Steel
Color :
RAL9004 , RAL9005
Size :
6U*600*450
Feature :
Wall Mounted Cabinet Rack
Status :
Stock
Description

6u server rack cabinet wall mount network cabinet enclosure rack

Features:

  1. Comply with ANSI/EIA;RS-310-D;IEC297
  2. 2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

  1. Advanced technology, precise size.
  2. Reliable structure, static loading capacity:60KG.
  3. Quick and easy wall mounted, 19’’ standard installation inside.
  4. Can be flated pack, save transportation inside.
  5. 120mm size fan could be installed at top of cabinet.
  6. Cable entry from top and bottom.
  7. IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Brand: TUXIN Column spacing: 465mm (19 inch)
No: WS1-6406 Material: SPCC cold rolled steel
Size: 600mm*450mm*6U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 10 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491；PARTI,DIN41494；PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Order Codes Capacity W*D*H(mm)
TX-WF-6404 4 600*450*220
TX-WF-6606 6 600*600*358
TX-WF-6409 9 600*450*492
TX-WF-6612 12 600*600*625
TX-WF-6415 15 600*450*730
TX-WF-6418 18 600*450*820
TX-WF-6422 22 600*450*960
TX-WF-6427 27 600*450*1280

Materials

Look at the steel plate, the steel plate must be thick, shop around, you can feel what thick and thin with your fingers. In addition, the brackets inside the cabinet should be large. In general, the stability and load-bearing properties of the nine-fold profiles are very good. The iron tee welded brackets do well in the stability.

Process Control:

We strictly control all incoming materials, spare parts and the quality of the entire production process to ensure the production of high-quality cabinets.

Brand Concept

Create a classic project to highlight the noble quality
