Specifications
Brand Name :
HCVsight
Model Number :
HCU-ZDT202TPC
Place of Origin :
ShenZhen,China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100000/pieces/mouth
Delivery Time :
2-3weeks
Packaging Details :
Anti-static bag in Paper box(110mmx93mm41mm)
Interface :
type-c
Pixel :
2mp
Compatibility :
Windows/Mac/Linux/Andriod
Lens Type :
Customizable
Color :
Black
Sensor Type :
CMOS
Frame Rate :
30fps
Product Size :
20mmX65mm(Base size is not included)
Agreement :
UVC
Description

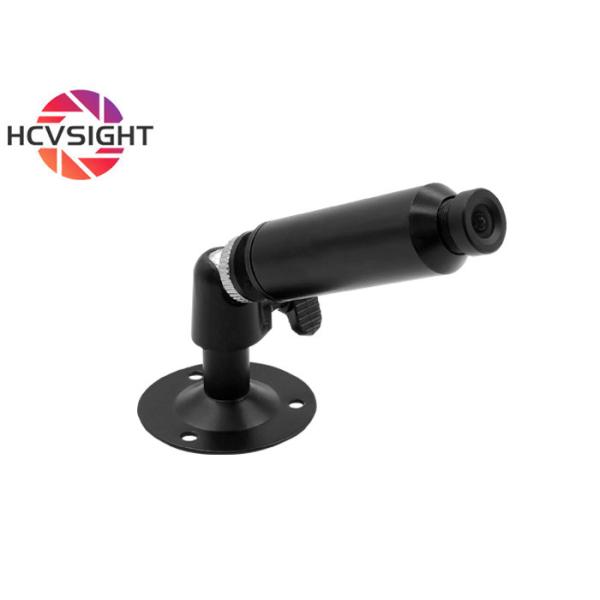

Type-C Interface 1080p 2MP HD Bullet Computer Equipment Surveillance Camera

Product Description:

This camera adopts a unique bullet-shaped design, exquisite and compact, not only does not take up space, but can also cleverly integrate into various environments. Its simple and stylish appearance, whether placed on a desk or installed next to other devices, looks just right, adding a sense of technology to your use scenarios. It has 2MP high-definition pixels, and can achieve 1080P full HD picture quality output. This means it can clearly capture every detail, whether it is the facial expressions of the characters, the text on the document, or the tiny objects in the scene, which can be presented to life on the screen. When conducting video conferencing, remote teaching or device monitoring, it will bring you an extremely clear and realistic visual experience, effectively avoiding information omissions caused by blurred image quality. Equipped with type-C interface, plug and play.

Technical parameters:

sensor 1/2.9"
Pixel 2MP
Compression format MJPG/YUV2
Frame rate

1920x1080 30 fps

Aduio support
Power frequency working voltage DC 5V
Product size 20mm×65mm(Base size is not included)
white balance automatic
working temperature <70°
Power consumption 0.25w
model HCU-ZDT202TPC
Interface type Type-C
Night vision function Not supported
lens Effective length: 3mm
Focal length:2.2
Distortion: <-1.0%
Component:4E+IR
Angle: D=95° H=83° V=55°
Chip type COMS
Support operating system WinXP/Vista/Win7/Win8/Win10
Linux 与 UVC Android

Product advantages and application scenarios:

1. Stable signal, many years of experience in the development and design of small camera modules, avoiding many signal interference factors

2. Good compatibility, the USB camera module is compatible with various operating systems, windows systems, Android systems, linux systems, Raspberry Pi, etc.

3. High color reproduction. The software engineering department has decades of experience in debugging. Lighting, outdoor sunlight, dark conditions in stairwells, faces, green plants, flames, etc. can be simulated in different environments for camera color debugging to maximize color reproduction. good.

4. Plug and play: The Type-C interface is super convenient and avoids cumbersome driver installation.

Products are used in various machine vision and equipment monitoring. Such as: ATM, bank account opening, queuing, hospital inspection reports, printers, vending machines, advertising machines, all-in-one machines, electronic scales, robots, cranes, placement machines, automatic welding equipment , fire water cannon, external law enforcement instrument, Android mobile phone external camera, computer camera, security surveillance camera, coal and electric boiler flame monitoring, certification comparison equipment, altimeter and other embedded equipment.

Custom made:

Brand name:HCVsight

Model:HCU-ZDT202

Place of Origin: Shenzhen, China

Minimum order quantity: Negotiable

Price: Negotiable

Packaging details: anti-static carton bag (110mmx93mm41mm)

Delivery time: 2-3 weeks

Payment method:T/T

Supply capacity: 100000/piece/port

Color: black

Compatibility: Windows/Mac/Linux

Interface: Type-C

Product size:20mmx65mm(Base size is not included)

Frame rate: 30fps

Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.

Pixels: 1mp, 2mp, 4mp, 5mp, 8mp, 12mp, etc. The highest pixel reaches 12 million. It has fixed focus and autofocus, and the product size is diverse. The same pixel size can be selected. The product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc. At the same time The size can be extremely small, our AHD/USB/ The CVBS camera module has no storage and transmission and is very small, the smallest of its kind on the market.

Support and service:

Our USB camera products come with comprehensive technical support and service to ensure you get the best experience. Our team of experts are always available to help you with any questions or queries you have about our products.

We provide the following technical support and services:

  • Online product documentation and user manuals
  • Technical support via email or phone
  • Remote Desktop Assistance
  • Repair and replacement services
  • Product training and education
  • Customized solutions for specific needs

Our goal is to provide you with the highest level of customer satisfaction and support. If you need any assistance with your USB camera products, please feel free to contact us.
