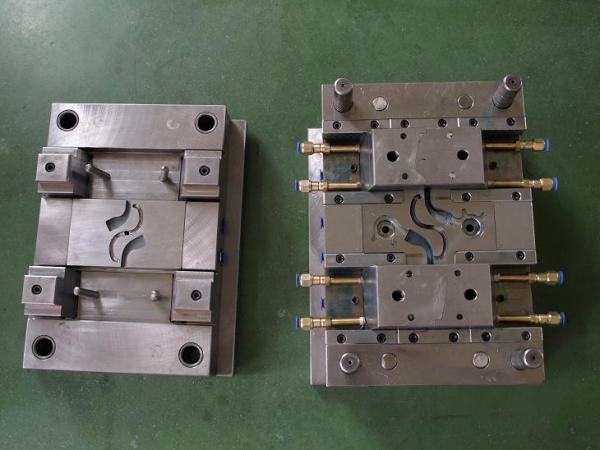

IMD Injection Moulding Die Good Wear Resistance In Mould Decoration
IMD Injection Moulding Die Good Wear Resistance In Mould Decoration
Specifications
Place of Origin :
CN
Brand Name :
Alever
Certification :
ISO9001:2000,ISO: TS16949
MOQ :
1set
Price :
Up to design
Packaging Details :
Wooden Box
Delivery Time :
15-45days, Up to design
Payment Terms :
L/C, T/T
Supply Ability :
150 set per month minium
Name :
Wear Resistance IMD Mold
Feature :
High Precision
Cavity :
Single-cavity, Multi-cavity, family mould, interchangeable core/cavity
Gate type :
cold runner, hot runner (Yudo/DME/Hasco)
Description

Wear Resistance IMD Mold , In-mould Decoration High Precision Injection Mould

injection Molding Process

With injection molding, granular plastic is fed by gravity from a hopper into a heated barrel. As the granules are slowly pushed forward by a screw-type plunger, the plastic is forced into a heated chamber called the barrel where it is melted. As the plunger advances, the melted plastic is forced through a nozzle that seats against the mold sprue bushing, allowing it to enter the mold cavity through a gate and runner system. The mold remains at a set temperature so the plastic can solidify almost as soon as the mold is filled.

Injection Molding Cycle

The sequence of events during the injection molding of a plastic part is called the injection molding cycle. The cycle begins when the mold closes, followed by the injection of the polymer into the mold cavity. Once the cavity is filled, a holding pressure is maintained to compensate for material shrinkage. In the next step, the screw turns, feeding the next shot to the front screw. This causes the screw to retract as the next shot is prepared. Once the part is sufficiently cool, the mold opens and the part is ejected.



Specifications:

1

Mould base

LKM & Hasco & DME standard

2

main material of core and cavity

S136, H13, 2344, 718, 2738, 8407, NAK80…

3

Hardness of mould

soft mould: 38~42HRC hard mould: 48~52HRC

4

Cavity

Single-cavity, Multi-cavity, family mould, interchangeable core/cavity

5

Surface treatment

EDM, texture, grinding, mirror polish

6

Gate type

cold runner, hot runner (Yudo/DME/Hasco)

7

Maximum mould size

800*800 mm

8

Mould life span

300000~+1,000,000 shots

9

Quality

ISO9001-2000 certification

10

injection material

ABS, POM, PMMA, PC, PP, Nylon, PA+GF, PET, TPE, PVC, HDPE etc

11

Lead time

30-40 days

12

Package

Wooden case for tools ,PE bags added export carton for parts

13

Payment term

T/T

14

Trade terms

EXW, FOB, CIF

15

Export country

Italy, Australia ,Hungary,Germany, USA, Canada…

16

Secondary treatment for parts

painting, silkscreen, pad printing, plating, assembly


Competitive Advantage:
double injection, over moulding, insert moulding, in mouding labelling
