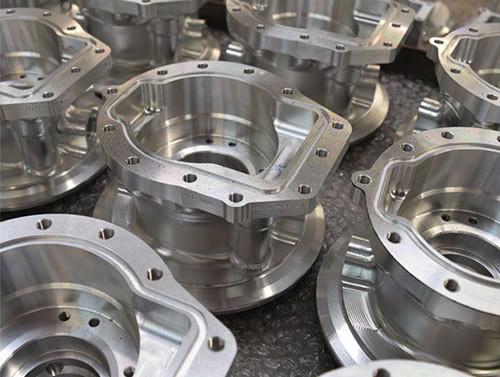

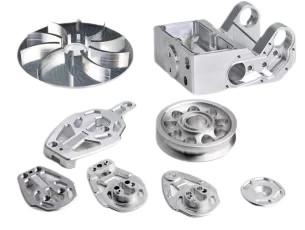

A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
Specifications
Brand Name :
JHPD
Model Number :
BGFA
Certification :
IATF16949
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets mold per month
Delivery Time :
20-30 days
Packaging Details :
PP Bag, Paper Roll, Blister Box, Carton or According to Your Demand
Mold Steel :
P20 , H13
Raw material :
Aluminum , Zinc , Magnesium
Mold life :
50000 to 80000 shots
Die temperature :
288
Casting temperature :
660
Cast machine :
From 280 ton to 1250 TON
Description

Die Casting Supplier Die Casting Aluminum Custom OEM Aluminum Casting A380 Service

Die Casting Design
Before die casting your parts, manufacturers will consider a number of factors, such as: element thicknesses and intricacies (affects the amount of time the metal should spend in mold or molds) and complexity of cast design (affects solidification time). To customize a die casting process for unique requirements, manufacturers can adjust the die design, process heat, the material composition or how long the material spends in a mold.

Die and component material and hardness for various cast metals
Die component Cast metal
Tin, lead & zinc Aluminium & magnesium Copper & brass
Material Hardness Material Hardness Material Hardness
Cavity inserts P20[note 1] 290–330 HB H13 42–48 HRC DIN 1.2367 38–44 HRC
H11 46–50 HRC H11 42–48 HRC H20, H21, H22 44–48 HRC
H13 46–50 HRC
Cores H13 46–52 HRC H13 44–48 HRC DIN 1.2367 40–46 HRC
DIN 1.2367 42–48 HRC
Core pins H13 48–52 HRC DIN 1.2367 prehard 37–40 HRC DIN 1.2367 prehard 37–40 HRC
Sprue parts H13 48–52 HRC H13
DIN 1.2367		 46–48 HRC
44–46 HRC		 DIN 1.2367 42–46 HRC
Nozzle 420 40–44 HRC H13 42–48 HRC DIN 1.2367
H13		 40–44 HRC
42–48 HRC
Ejector pins H13[note 2] 46–50 HRC H13[note 2] 46–50 HRC H13[note 2] 46–50 HRC
Plunger shot sleeve H13[note 2] 46–50 HRC H13[note 2]
DIN 1.2367[note 2]		 42–48 HRC
42–48 HRC		 DIN 1.2367[note 2]
H13[note 2]		 42–46 HRC
42–46 HRC
Holder block 4140 prehard ~300 HB 4140 prehard ~300 HB 4140 prehard ~300 HB

HPDC Mold Advantages

· Net shape part configuration is achievable

· High dimensional accuracy is achievable

· Fast production

· Thinner walls are achievable when compared to investment and sand castings

· Wide range of possible shapes

· External threads can be casted

· Steel inserts can be over-molded

· Holes can be cored to internal tap drill size

Typical die temperatures and life for various cast materials
Zinc Aluminium Magnesium Brass (leaded yellow)
Maximum die life [number of cycles] 1,000,000 100,000 100,000 10,000
Die temperature [C° (F°)] 218 (425) 288 (550) 260 (500) 500 (950)
Casting temperature [C° (F°)] 400 (760) 660 (1220) 760 (1400) 1090 (2000)

Die casting is a manufacturing process that is commonly used for producing accurately dimensioned, sharply defined, smooth, or textured surface metal parts. It is accomplished by forcing molten metal under high pressure into reusable metal dies. The die casting molds process follows the subsequent procedures regarding die cast mold manufacturing:

Mold Manufacturing Processes

1. A mold is created in at least two sections to allow the proper removal of the casting.
2. The sections are mounted securely within the machine and are arranged so that one is stationary while the other is moveable.
3. The two are tightly clamped together.
4. Molten metal is injected into the die cavity where it quickly solidifies.
5. The die halves are drawn apart and the casting is ejected.

A380 Service 80000 Shots Mold Die Casting H13 Steel For Auto
