Fully Automatic Wood Pulp Food Serving Tray Production Line
Fully Automatic Wood Pulp Food Serving Tray Production Line
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
3 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20sets
Delivery Time :
60-90days
Packaging Details :
Export Standar Packing
Automation :
Fully automatic
Raw material :
bagasse/bamboo/wood/straw
Mold size :
1300*1100 or 1100*800mm
Production Capacity :
1.5 or 1.2 tons/set/day
Thermal power :
160000kcal/hr or 120000kcal/hr
Heating by electricity :
171kw or 141kw
Forming Method :
Vacuum Suction
Control Method :
PLC and Touch Screen
Description

Fully automatic wood pulp food serving tray production line​

The production of pulp molded food serving tray is a nature to nature process. It uses sugarcane bagasse pulp, bamboo pulp or wood pulp as raw material, no waste water or smell is generated during the production. The finished product can be 100% degradable

Technical Description
Machine Material All parts in contact with water is SS304 Stainless Steel
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen

Features:


1. Screen frame transfer method is adopted,which reduces the consumption of vacuum and compressed air; less hole blocking chances and time for mold maintenance extended by 1-2 months,black spots over the products avoided;

2. Fully automatic operation on forming, hot pressing, trimming, stacking, reducing labor cost.

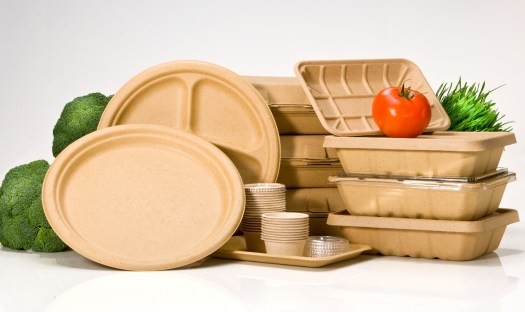

Production Application:


-Disposable Tableware
-Paper Plates

-Paper Bowls

-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers

Production Working Process:

Fully Automatic Wood Pulp Food Serving Tray Production Line

Application:

Fully Automatic Wood Pulp Food Serving Tray Production Line
