Pulp Molding Finery Package Machine With Multi Joint Robot Arm
Description:
This machine can be applied to high-end electronic product packaging, cosmetics products packaging, and crafts packaging, etc.

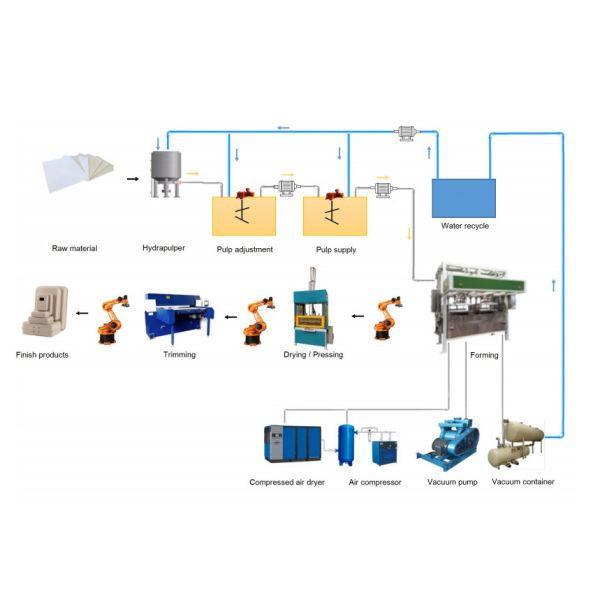

Pulp molded industry package production line is composed of pulping system, main equipment (including forming,hotpressing and receiving table), off-line automatic trimming and auxiliary system, used in the production of mobile phones, cosmetics, jewelry, tobacco and alcohol and other high-end consumer products packaging.
Specification:
| Capacity | 60-250kg/ hr |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Workshop Requirement | 1000~ 1800㎡ |
| Operator Required | 4 -5 workers/ shift |
| Drying Method | Dry in mold, thermal forming |
| Forming Method | Vacuum forming |
| Electricity consumption | 180-400kw/hr |
| Water consumption | 1-2 tons/hr |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Feature:
- High precision, high stability;
- Forming and hotpressing,trimming 3-in-one design;
- Can produce upside down cup lid;
- Position, pressure and temperature can be adjusted accurately

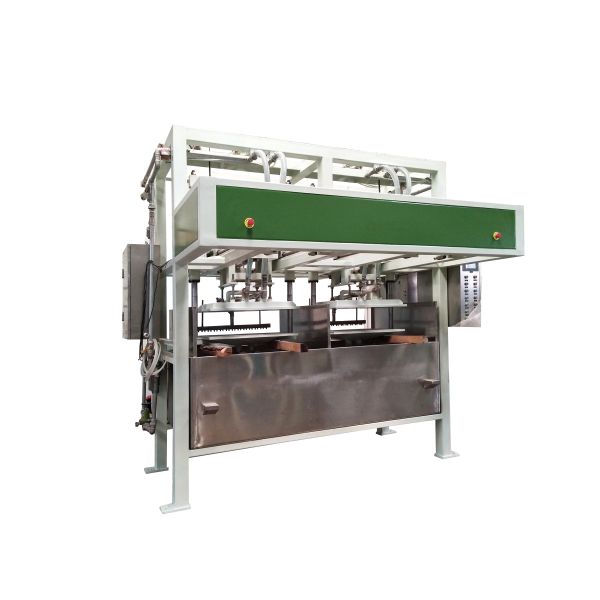

Illustrations of Machine & Product:
